Belimo

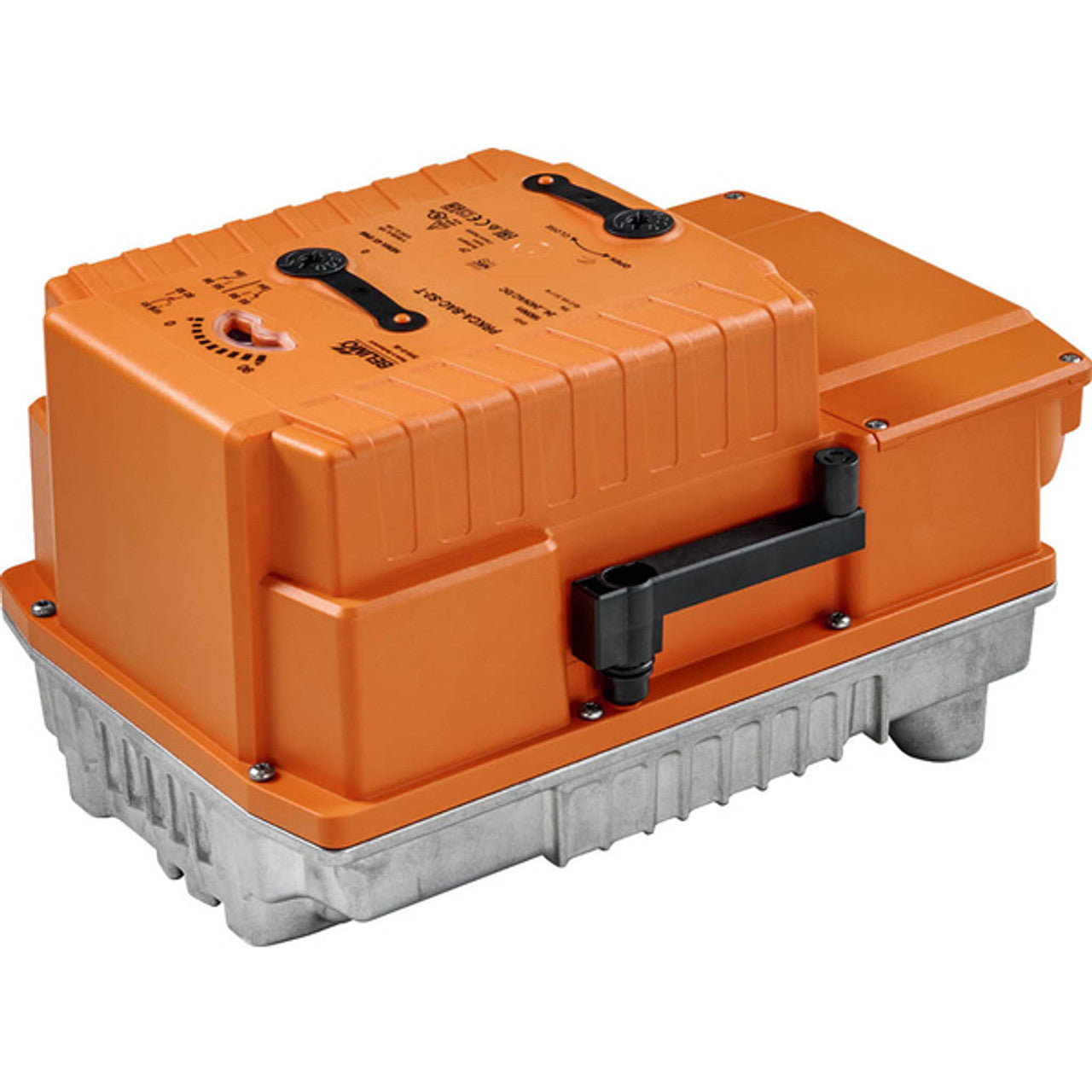

Belimo - Rotary actuator fail-safe NC / NO - PRKCA-BAC-S2-T-200 Series
- Regular price
- $1,653.60
Secure Payment & Return Policies
Secure Payment & Return Policies
We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:
-
Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.
-
Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.
-
Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.
-
Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.
-
Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.
- Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.
Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.
FAQs - Frequently Asked Questions
FAQs - Frequently Asked Questions
- Regular price
- $1,653.60
Business Credit Account Application
(Click here to see full screen)
Apply for a Business Credit Account with Tecnologia Shop, our team will review your application and contact you in 24h.
Upon approval, you will receive credit to spend on our store shown directly in your checkout along with all information needed.
PRKCA-BAC-S2-T-200
Description: Rotary actuator fail-safe for butterfly valves
- Torque motor: 160 Nm
- Nominal voltage: AC 24...240 V / DC 24...125 V
- Control: Modulating, communicative, hybrid
- With 2 integrated auxiliary switches
- Conversion of sensor signals
- Communication via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus, or conventional control
Technical Data:
Electrical Data:
- Nominal voltage: AC 24...240 V / DC 24...125 V
- Nominal voltage frequency: 50/60 Hz
- Nominal voltage range: AC 19.2...264 V / DC 19.2...137.5 V
- Power consumption in operation: 52 W
- Power consumption in rest position: 9 W
- Power consumption for wire sizing:
- With 24 V: 54 VA
- With 240 V: 68 VA
- Power consumption note: Imax 20 A @ 5 ms
- Auxiliary switch: 2x SPDT, 1 x 10° / 1 x 0...90° (default setting 85°)
- Switching capacity auxiliary switch: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V
- Connection supply: Terminals 2.5 mm²
- Connection protective earth: Earth terminal
- Connection control: Terminals 1.5 mm²
- Connection auxiliary switch: Terminals 2.5 mm²
- Parallel operation: Yes (note the performance data)
Data Bus Communication:
- Communicative control: BACnet MS/TP, Modbus RTU, MP-Bus
- Number of nodes BACnet / Modbus: See interface description
- MP-Bus max.: 8
Functional Data:
- Torque motor: 160 Nm (parametrised for D6200W/WL)
- Operating range Y: 2...10 V
- Input impedance: 100 kΩ
- Operating range Y variable: 0.5...10 V, 4...20 mA
- Position feedback U: 2...10 V
- Position feedback U note: Max. 0.5 mA
- Position feedback U variable: 0.5...10 V
- Setting fail-safe position: 0...100%, adjustable with Belimo Assistant App (default setting 0%)
- Bridging time (PF): 2 s, variable 0...10 s
- Position accuracy: ±5%
- Manual override: Hand crank
- Running time motor: 35 s / 90°, variable 30...120 s
Part Numbers:
PRKCA-BAC-S2-T-200 - Rotary actuator fail-safe NC / NO
