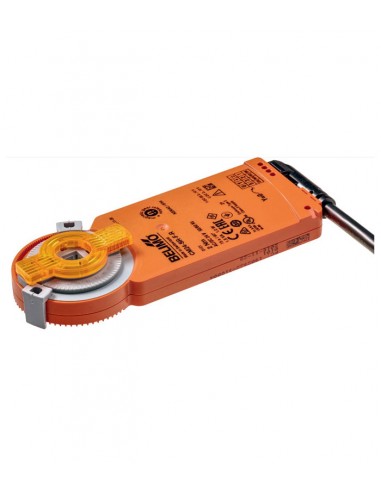

• Belimo - Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54 - CM24-SR-R Series

Belimo

Belimo - Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54 - CM24-SR-R Series

SKU CM24-SR-R
$130.00

Secure Payment & Return Policies
payments_badges

We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:

  1. Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.

  2. Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.

  3. Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.

  4. Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.

  5. Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.

  6. Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.

Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.

FAQs - Frequently Asked Questions
1. What are your accepted payment methods?
Shop, Shopify Payments, Paypal, and Google Pay. Other payments methods are also available during checkout.
2. How can I track my order?
After your order has been shipped, you will receive a shipping confirmation email with a tracking number. You can use this number to track your package on our website or through Sendle carrier.
3. I have a project, can tecnologia help me?
Yes! We have a dedicated team to assist you on your project. Contact us through contact page or email: contact@tecnologiashop.com.au
4. What is the availability of your products?
Together with our partners, we work with a flexible inventory, we have multiple distribution centre across Australia, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h before shipping.
5. Can I pick up my order? Where you're located?
Yes! We're located at Unit 5/37 Anzac Ave, Smeaton Grange NSW 2567. Note that this is NOT a physical store, please order online and collect when available for collection. We have multiple distribution centre, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h.
$130.00
Apply for a Business Credit Account
Belimo - Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54 - CM24-SR-R Series

  • Australia Post

    Express Parcel and Parcel Post available.

  • New Zealand

    We now ship to New Zeland

  • Contact us

    Our online team is ready to help you by chat and email!

  • Availability

    Check availability on the green button above.

CM24-SR-R

Description: Modulating damper actuator for adjusting dampers in technical building installations

  • Air damper size: Up to approx. 0.4 m²
  • Torque motor: 2 Nm
  • Nominal voltage: AC/DC 24 V
  • Control: Modulating 2...10 V
  • Position feedback: 2...10 V

Technical Data:

Electrical Data:

  • Nominal voltage: AC/DC 24 V
  • Nominal voltage frequency: 50/60 Hz
  • Nominal voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V
  • Power consumption in operation: 1 W
  • Power consumption in rest position: 0.5 W
  • Power consumption for wire sizing: 1.5 VA
  • Connection supply / control: Cable 1 m, 4x 0.75 mm²
  • Parallel operation: Yes (note the performance data)

Functional Data:

  • Torque motor: 2 Nm
  • Operating range Y: 2...10 V
  • Input impedance: 100 kΩ
  • Position feedback U: 2...10 V
  • Position feedback U note: Max. 1 mA
  • Position accuracy: ±5%
  • Direction of motion motor: Clockwise rotation
  • Direction of motion note: Y = 0 V: right end stop, position 0
  • Manual override: With magnet
  • Angle of rotation: 95°, fixed setting
  • Running time motor: 75 s / 90°
  • Sound power level, motor: 35 dB(A)

Mechanical Data:

  • Mechanical interface: Universal shaft clamp 6...12.7 mm
  • Position indication: Mechanical, pluggable (with integrated magnet for gear train disengagement)

Safety Data:

  • Protection class: IEC/EN III, Safety Extra-Low Voltage (SELV)
  • Power source: UL Class 2 Supply
  • Degree of protection IEC/EN: IP54
  • Degree of protection NEMA/UL: NEMA 2
  • Enclosure UL: Enclosure Type 2

Compliance:

  • EMC: CE according to 2014/30/EU
  • Certification: IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
  • Hygiene test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission

Part Numbers:
CM24-SR-R - Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54
