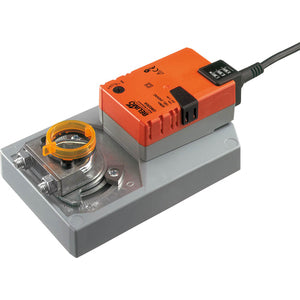

GM230A Damper Actuator
Overview:
The GM230A is a robust damper actuator designed for adjusting dampers in technical building installations. With a powerful torque motor of 40 Nm, it provides reliable control for air damper sizes up to approximately 8 m². Operating on a nominal voltage range of AC 100-240 V, it offers flexibility and compatibility with various electrical systems.
Key Features:
-
Torque Motor: Equipped with a high-torque motor of 40 Nm, ensuring sufficient force for precise adjustment of dampers to regulate airflow effectively.
-
Nominal Voltage: Designed to operate within a wide nominal voltage range of AC 100-240 V, providing compatibility with different electrical systems and environments.
-
Control Mechanism: Utilizes open/close control, making it suitable for applications where simple two-position control is required, but unsuitable for 3-point controls.
-
Manual Override: Features a manual override function with a push-button interface, allowing for manual adjustment of damper positions when necessary, with the option to lock the override to prevent unauthorized changes.
-
Angle of Rotation: Offers a maximum angle of rotation of 95°, with the ability to limit rotation on both sides using adjustable mechanical end stops, providing flexibility in damper positioning.
Technical Specifications:
- Nominal Voltage: AC 100-240 V
- Power Consumption: 5 W (operation), 2.5 W (rest position)
- Operating Range: AC 85-265 V
- Angle of Rotation: Max. 95°
- Running Time: 150 s / 90°
- Degree of Protection: IEC/EN IP54, NEMA 2
- Enclosure Type: UL Enclosure Type 2
Safety and Certification:
- Protection Class: IEC/EN II, reinforced insulation
- Degree of Protection: IEC/EN IP54, NEMA 2
- Hygiene Test: According to VDI 6022 Part 1 / SWKI VA 104-01, ensuring cleanability, disinfectability, and low emission.
- UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1
Part Numbers:
GM230A - Damper Actuator
Need help to order a specific Part-Number? Contact Us!
