GM230G-T

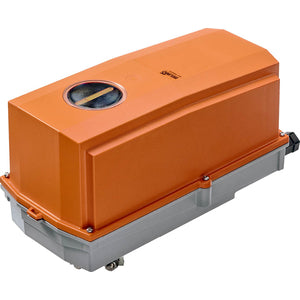

Description: Damper actuator in the IP66/67 protective housing for adjusting dampers in HVAC plants, comparable industrial plants, and technical building installations.

  • Air damper size: Up to approx. 8 m²
  • Torque motor: 40 Nm
  • Nominal voltage: AC 100...240 V
  • Control: Open/close (unsuitable for 3-point controls)
  • Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater)

Technical Data:

Electrical Data:

  • Nominal voltage: AC 100...240 V
  • Nominal voltage frequency: 50/60 Hz
  • Nominal voltage range: AC 85...265 V
  • Power consumption in operation: 5 W
  • Power consumption in rest position: 2.5 W
  • Power consumption for wire sizing: 9 VA
  • Connection supply / control: Terminals 4 mm² (cable ø4...10 mm, 3-wire)
  • Parallel operation: Yes (note the performance data)

Functional Data:

  • Torque motor: 40 Nm
  • Direction of motion motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
  • Manual override: With push-button, can be locked (under protective housing)
  • Angle of rotation: Max. 95°
  • Angle of rotation note: Can be limited on both sides with adjustable mechanical end stops
  • Running time motor: 150 s / 90°
  • Sound power level, motor: 45 dB(A)

Mechanical Data:

  • Mechanical interface: Universal shaft clamp 14...26.7 mm
  • Position indication: Mechanical, pluggable

Safety Data:

  • Protection class: IEC/EN II, reinforced insulation
  • Protection class UL: II, reinforced insulation
  • Degree of protection IEC/EN: IP66/67
  • Degree of protection NEMA/UL: NEMA 4X
  • Enclosure UL: Enclosure Type 4X

Environmental Data:

  • Ambient humidity: Max. 100% RH
  • Ambient temperature: -30...50°C [-22...122°F]
  • Ambient temperature note: -40...50°C for actuator with integrated heating
  • Storage temperature: -40...80°C [-40...176°F]

Compliance:

  • EMC: CE according to 2014/30/EU
  • Low voltage directive: CE according to 2014/35/EU
  • Certification: IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1
  • The UL marking on the actuator depends on the production site; the device is UL-compliant in any case.
  • Type of action: Type 1
  • Rated impulse voltage supply / control: 2.5 kV
  • Pollution degree: 4

Part Numbers:
GM230G-T - Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP66/67, Terminals
