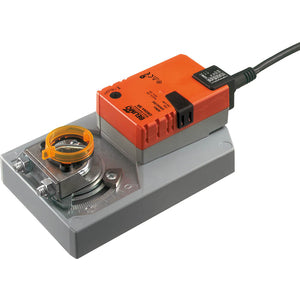

GM24A-SR Modulating Damper Actuator
Overview:
The GM24A-SR is a highly versatile modulating damper actuator designed for precise adjustment of dampers in technical building installations. With a torque motor of 40 Nm and compatibility with air damper sizes up to approximately 8 m², it offers robust performance and reliable control for a wide range of HVAC applications.
Key Features:
-
Torque Motor: Equipped with a powerful 40 Nm torque motor, providing sufficient force for smooth and precise adjustment of dampers to achieve optimal airflow control.
-
Control Modulating: Designed for modulating control with a range of 2-10 V, ensuring fine-tuned adjustment of damper positions for precise airflow regulation and energy efficiency.
-
Position Feedback: Features position feedback capability with a range of 2-10 V, enabling real-time monitoring of damper positions to ensure accurate control and system performance.
-
Manual Override: Includes a manual override feature with a push-button interface, allowing for manual adjustment of damper positions when necessary, with the option to lock the override to prevent unauthorized changes.
-
Angle of Rotation: Offers a maximum angle of rotation of 95°, with the ability to limit rotation on both sides using adjustable mechanical end stops, providing flexibility in damper positioning.
Technical Specifications:
- Nominal Voltage: AC/DC 24 V
- Power Consumption: 4.5 W (operation), 2 W (rest position)
- Operating Range: 2-10 V
- Position Accuracy: ±5%
- Running Time: 150 s / 90°
- Degree of Protection: IEC/EN IP54, NEMA 2
- Enclosure Type: UL Enclosure Type 2
Safety and Certification:
- Protection Class: IEC/EN III, Safety Extra-Low Voltage (SELV)
- Power Source: UL Class 2 Supply
- EMC: CE according to 2014/30/EU
- Low Voltage Directive: CE according to 2006/95/EC
- Certification: IEC/EN 60730-1 and IEC/EN 60730-2-14
Part Numbers:
GM24A-SR
