Belimo

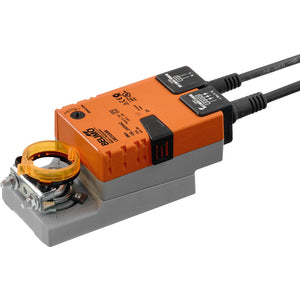

Belimo - Rotary actuator, 5 Nm, AC 100...240 V, 2...10 V, 150 s, IP54 - LM230ASR Series
- Regular price
- $194.80
Secure Payment & Return Policies
Secure Payment & Return Policies
We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:
-
Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.
-
Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.
-
Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.
-
Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.
-
Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.
- Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.
Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.
FAQs - Frequently Asked Questions
FAQs - Frequently Asked Questions
- Regular price
- $194.80
Business Credit Account Application
(Click here to see full screen)
Apply for a Business Credit Account with Tecnologia Shop, our team will review your application and contact you in 24h.
Upon approval, you will receive credit to spend on our store shown directly in your checkout along with all information needed.
LM230ASR
Description: Modulating damper actuator for adjusting dampers in technical building installations.
- Air damper size: Up to approx. 1 m²
- Torque motor: 5 Nm
- Nominal voltage: AC 100...240 V
- Control: Modulating 2...10 V
- Position feedback: 2...10 V
Technical Data:
Electrical Data:
- Nominal voltage: AC 100...240 V
- Nominal voltage frequency: 50/60 Hz
- Nominal voltage range: AC 85...265 V
- Power consumption in operation: 2 W
- Power consumption in rest position: 1 W
- Power consumption for wire sizing: 4 VA
- Connection supply: Cable 1 m, 2 x 0.75 mm²
- Connection control: Cable 1 m, 4 x 0.75 mm²
- Parallel operation: Yes (note the performance data)
Functional Data:
- Torque motor: 5 Nm
- Operating range Y: 2...10 V
- Input impedance: 100 kΩ
- Position feedback U: 2...10 V
- Position feedback U note: Max. 1 mA
- Auxiliary supply: DC 24 V ±30%, max. 10 mA
- Position accuracy: ±5%
- Direction of motion motor: Selectable with switch 0/1
- Direction of motion note: Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation)
- Manual override: With push-button, can be locked
- Angle of rotation: Max. 95°
- Angle of rotation note: Can be limited on both sides with adjustable mechanical end stops
- Running time motor: 150 s / 90°
- Sound power level, motor: 35 dB(A)
Mechanical Data:
- Mechanical interface: Universal shaft clamp 6...20 mm
- Position indication: Mechanical, pluggable
Safety Data:
- Protection class: IEC/EN II, reinforced insulation
- Protection class UL: II, reinforced insulation
- Degree of protection IEC/EN: IP54
- Degree of protection NEMA/UL: NEMA 2
- Enclosure UL: Enclosure Type 2
Compliance:
- EMC: CE according to 2014/30/EU
- Low voltage directive: CE according to 2014/35/EU
- Certification: IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
Part Numbers:
LM230ASR - Rotary actuator, 5 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
