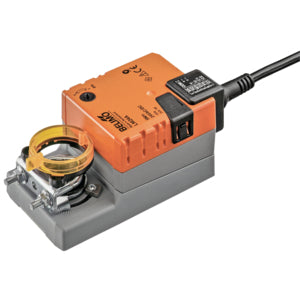

Belimo - Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54 - LM24A Series
- Regular price
- $118.90
Secure Payment & Return Policies
Secure Payment & Return Policies
We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:
-
Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.
-
Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.
-
Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.
-
Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.
-
Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.
- Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.
Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.
FAQs - Frequently Asked Questions
FAQs - Frequently Asked Questions
- Regular price
- $118.90
Business Credit Account Application
(Click here to see full screen)
Apply for a Business Credit Account with Tecnologia Shop, our team will review your application and contact you in 24h.
Upon approval, you will receive credit to spend on our store shown directly in your checkout along with all information needed.
LM24A
Description: Damper actuator for adjusting dampers in technical building installations.
- Air damper size: Up to approx. 1 m²
- Torque motor: 5 Nm
- Nominal voltage: AC/DC 24 V
- Control: Open/close, 3-point
Electrical Data:
- Nominal voltage: AC/DC 24 V
- Nominal voltage frequency: 50/60 Hz
- Nominal voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V
- Power consumption in operation: 1 W
- Power consumption in rest position: 0.2 W
- Power consumption for wire sizing: 1.5 VA
- Connection supply / control: Cable 1 m, 3x 0.75 mm²
Functional Data:
- Torque motor: 5 Nm
- Direction of motion motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
- Manual override: With push-button, can be locked
- Angle of rotation: Max. 95°
- Angle of rotation note: Can be limited on both sides with adjustable mechanical end stops
- Running time motor: 150 s / 90°
- Sound power level, motor: 35 dB(A)
- Mechanical interface: Universal shaft clamp 6...20 mm
- Position indication: Mechanical, pluggable
Safety Data:
- Protection class: IEC/EN III, Safety Extra-Low Voltage (SELV)
- Power source: UL Class 2 Supply
- Degree of protection: IEC/EN IP54, NEMA/UL NEMA 2
- Enclosure: UL Enclosure Type 2
Compliance:
- EMC: CE according to 2014/30/EU
- Certification: IEC/EN 60730-1 and IEC/EN 60730-2-14
- UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
- The UL marking on the actuator depends on the production site, the device is UL-compliant in any case.
- Hygiene test: According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission
Additional Information:
- Type of action: Type 1
- Rated impulse voltage supply / control: 0.8 kV
- Pollution degree: 3
Part Numbers:
LM24A - Rotary actuator, 5 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, IP54
