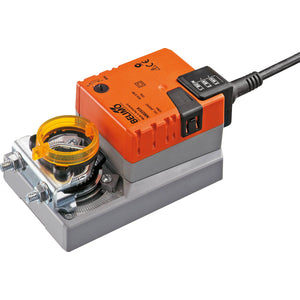

NM230A

Description: Damper actuator for adjusting dampers in technical building installations

  • Air damper size: Up to approx. 2 m²
  • Torque motor: 10 Nm
  • Nominal voltage: AC 100...240 V
  • Control: Open/close, 3-point

Technical Data:

Electrical Data:

  • Nominal voltage: AC 100...240 V
  • Nominal voltage frequency: 50/60 Hz
  • Nominal voltage range: AC 85...265 V
  • Power consumption in operation: 2.5 W
  • Power consumption in rest position: 0.6 W
  • Power consumption for wire sizing: 5.5 VA
  • Connection supply / control: Cable 1 m, 3x 0.75 mm²
  • Parallel operation: Yes (note the performance data)

Functional Data:

  • Torque motor: 10 Nm
  • Direction of motion motor selectable with switch: 0 (ccw rotation) / 1 (cw rotation)
  • Manual override: With push-button, can be locked
  • Angle of rotation: Max. 95°
  • Angle of rotation note: Can be limited on both sides with adjustable mechanical end stops
  • Running time motor: 150 s / 90°
  • Sound power level, motor: 35 dB(A)

Mechanical Data:

  • Mechanical interface: Universal shaft clamp 8...26.7 mm
  • Position indication: Mechanical, pluggable

Safety Data:

  • Protection class: IEC/EN II, reinforced insulation
  • Protection class UL: II, reinforced insulation
  • Degree of protection IEC/EN: IP54
  • Degree of protection NEMA/UL: NEMA 2
  • Enclosure UL: Enclosure Type 2

Compliance:

  • EMC: CE according to 2014/30/EU
  • Low voltage directive: CE according to 2014/35/EU
  • Certification: IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • UL Approval: cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1
  • The UL marking on the actuator depends on the production site, the device is UL-compliant in any case

Hygiene Test:

  • According to VDI 6022 Part 1 / SWKI VA 104-01
  • Cleanable and disinfectable, low emission

Type of Action:

  • Type 1

Rated Impulse Voltage Supply / Control:

  • 2.5 kV

Part Numbers:
NM230A - Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54
