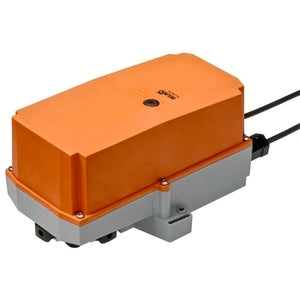

• Belimo -Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1x SPDT, IP66/67 - SM24P-S

Belimo

Belimo - Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1x SPDT, IP66/67 - SM24P-S

SKU SM24P-S
$504.90

Secure Payment & Return Policies
payments_badges

We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:

  1. Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.

  2. Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.

  3. Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.

  4. Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.

  5. Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.

  6. Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.

Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.

FAQs - Frequently Asked Questions
1. What are your accepted payment methods?
Shop, Shopify Payments, Paypal, and Google Pay. Other payments methods are also available during checkout.
2. How can I track my order?
After your order has been shipped, you will receive a shipping confirmation email with a tracking number. You can use this number to track your package on our website or through Sendle carrier.
3. I have a project, can tecnologia help me?
Yes! We have a dedicated team to assist you on your project. Contact us through contact page or email: contact@tecnologiashop.com.au
4. What is the availability of your products?
Together with our partners, we work with a flexible inventory, we have multiple distribution centre across Australia, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h before shipping.
5. Can I pick up my order? Where you're located?
Yes! We're located at Unit 5/37 Anzac Ave, Smeaton Grange NSW 2567. Note that this is NOT a physical store, please order online and collect when available for collection. We have multiple distribution centre, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h.
$504.90
Apply for a Business Credit Account
Belimo -Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1x SPDT, IP66/67 - SM24P-S

  • Australia Post

    Express Parcel and Parcel Post available.

  • New Zealand

    We now ship to New Zeland

  • Contact us

    Our online team is ready to help you by chat and email!

  • Availability

    Check availability on the green button above.

Description: RobustLine damper actuator designed for adjusting dampers in HVAC plants, comparable industrial plants, and technical building installations.

  • Suitable for air damper sizes up to approximately 4 m².
  • Equipped with a torque motor with 20 Nm capacity.
  • Operates on nominal voltage AC/DC 24 V.
  • Control mechanism: Open/close, 3-point.
  • Integrated with an auxiliary switch.
  • Offers optimal protection against corrosion, chemical influences, UV radiation, dampness, and condensation.

Electrical Data:

  • Nominal voltage: AC/DC 24 V
  • Nominal voltage frequency: 50/60 Hz
  • Nominal voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V
  • Power consumption in operation: 2 W
  • Power consumption in rest position: 0.2 W
  • Power consumption for wire sizing: 4 VA
  • Auxiliary switch: 1x SPDT, 0...100%
  • Switching capacity auxiliary switch: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V
  • Connection supply/control: Cable 1 m, 3 x 0.75 mm² (halogen-free)
  • Connection auxiliary switch: Cable 1 m, 3 x 0.75 mm² (halogen-free)
  • Parallel operation: Yes

Functional Data:

  • Torque motor: 20 Nm
  • Direction of motion motor: Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
  • Manual override: with push-button, can be locked
  • Angle of rotation: Max. 95°
  • Angle of rotation note: Can be limited on both sides with adjustable mechanical end stops
  • Running time motor: 150 s / 90°
  • Sound power level, motor: 45 dB(A)
  • Mechanical interface: Universal shaft clamp 14...20 mm
  • Position indication: Mechanical, pluggable

Safety Data:

  • Protection class: IEC/EN III, Safety Extra-Low Voltage (SELV)
  • Power source: UL Class 2 Supply
  • Protection class auxiliary switch: IEC/EN II, reinforced insulation
  • Degree of protection: IEC/EN IP66/67, NEMA/UL NEMA 4X
  • Enclosure: UL Enclosure Type 4X
  • EMC: CE according to 2014/30/EU
  • Low voltage directive: CE according to 2014/35/EU
  • Certification: IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • UL Approval: cULus according to UL60730-1A, UL60730-2-14, and CAN/CSA E60730-1
  • Type of action: Type 1.B
  • Rated impulse voltage supply/control: 0.8 kV
  • Rated impulse voltage auxiliary switch: 2.5 kV
  • Pollution degree: 4

Part Numbers:
SM24P-S - Rotary actuator (RobustLine), 20 Nm, AC/DC 24 V, Open/close, 3-point, 150 s, 1x SPDT, IP66/67
