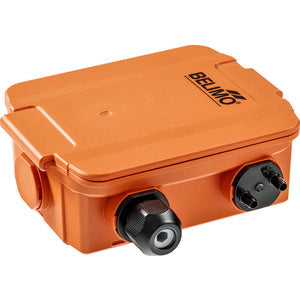

22ADP-154D Differential Pressure Sensor

Overview:

The 22ADP-154D is an advanced dual differential pressure sensor featuring two independent measuring systems and Modbus functionality. With eight selectable ranges for each system, this sensor offers precise monitoring of air and non-aggressive gases in HVAC systems and pressure differential applications, ensuring optimal performance and efficiency.

Key Features:

• Dual Measuring Systems: Equipped with two independent measuring systems, this sensor provides enhanced flexibility and accuracy, allowing simultaneous monitoring of multiple pressure points in the system.

• Modbus Functionality: Integrated Modbus RTU communication enables seamless connectivity and data exchange, facilitating efficient monitoring and control of pressure levels in real-time.

• Selectable Ranges: With eight selectable ranges for each measuring system, users have the flexibility to adapt the sensor to specific pressure monitoring requirements, ensuring accurate and consistent results across various applications.

• Versatile Applications: Ideal for monitoring overpressure, underpressure, or differential pressure in HVAC systems, including air filters, fans, V-belts, and pressure differential systems, ensuring optimal performance and efficiency.

• Robust Enclosure: Enclosed in an IP65 / NEMA 4X rated enclosure, the sensor is well-protected against dust, water, and other environmental factors, ensuring durability and reliability in harsh conditions.

Technical Specifications:

• Measuring Range: -100...2500 Pa
• Communication: Modbus RTU
• Output Signal: 0...5 V, 0...10 V
• Burst Pressure: 40 kPa

Electrical Data:

• Nominal Voltage: AC/DC 24 V
• Nominal Voltage Range: AC 19...29 V / DC 15...35 V
• Power Consumption: AC 4.3 VA, DC 2.3 W
• Electrical Connection: Pluggable spring-loaded terminal block

Functional Data:

• Sensor Technology: Piezo measuring element
• Application: Air and non-aggressive gases
• Multirange: 8 measuring ranges selectable
• Voltage Output: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
• Output Signal Active Note: Output 0...5/10 V selectable with switch
• Typical Response Time: Adjustable between 0.8 s or 4.0 s
• Measured Values: Differential pressure, volumetric flow
• Measuring Fluid: Air and non-aggressive gases

Flow Specification:

• Measuring Range Volumetric Flow: Adjustable via Modbus
• Default Setting: 0...750'000 m³/h
• Selectable Units: m³/h, m³/s, cfm

Type Overview:

Type: 22ADP-154D
Measuring Range (Pressure): $-100����2500��$
Communication: Modbus RTU
Output Signal (Active Pressure): 0 V to 5 V, 0 V to 10 V
Output Signal (Active Volumetric Flow): 0 V to 5 V, 0 V to 10 V
Burst Pressure: 40 kPa

Type: 22ADP-154F
Measuring Range: $-100��\mathrm{.}\mathrm{.}\mathrm{.}2500��$
Communication: Modbus RTU
Output Signal (Active Pressure): 0 V to 5 V, 0 V to 10 V
Output Signal (Active Volumetric Flow): 0 V to 5 V, 0 V to 10 V
Burst Pressure: 40 kPa
Display Type: LCD

Type: 22ADP-154H
Measuring Range (Pressure): $-100����2500��$
Communication: Modbus RTU
Output Signal (Active Pressure): 0 V to 5 V, 0 V to 10 V
Output Signal (Active Volumetric Flow): 0 V to 5 V, 0 V to 10 V
Burst Pressure: 40 kPa

Type: 22ADP-154K
Measuring Range (Pressure): $-100����2500��$
Communication: Modbus RTU
Output Signal (Active Pressure): 0 V to 5 V, 0 V to 10 V
Output Signal (Active Volumetric Flow): 0 V to 5 V, 0 V to 10 V
Burst Pressure: 40 kPa
Display Type: LCD

Part Numbers:
22ADP-154: -100..2500Pa - Modbus RTU
22ADP-154L: -100..2500Pa - Modbus RTU - LCD Display
22ADP-154D: -100..2500Pa - Modbus RTU
22ADP-154F: -100..2500Pa - Modbus RTU - LCD Display
22ADP-154H: -100..2500Pa - Modbus RTU
22ADP-154K: -100..2500Pa - Modbus RTU - LCD Display
