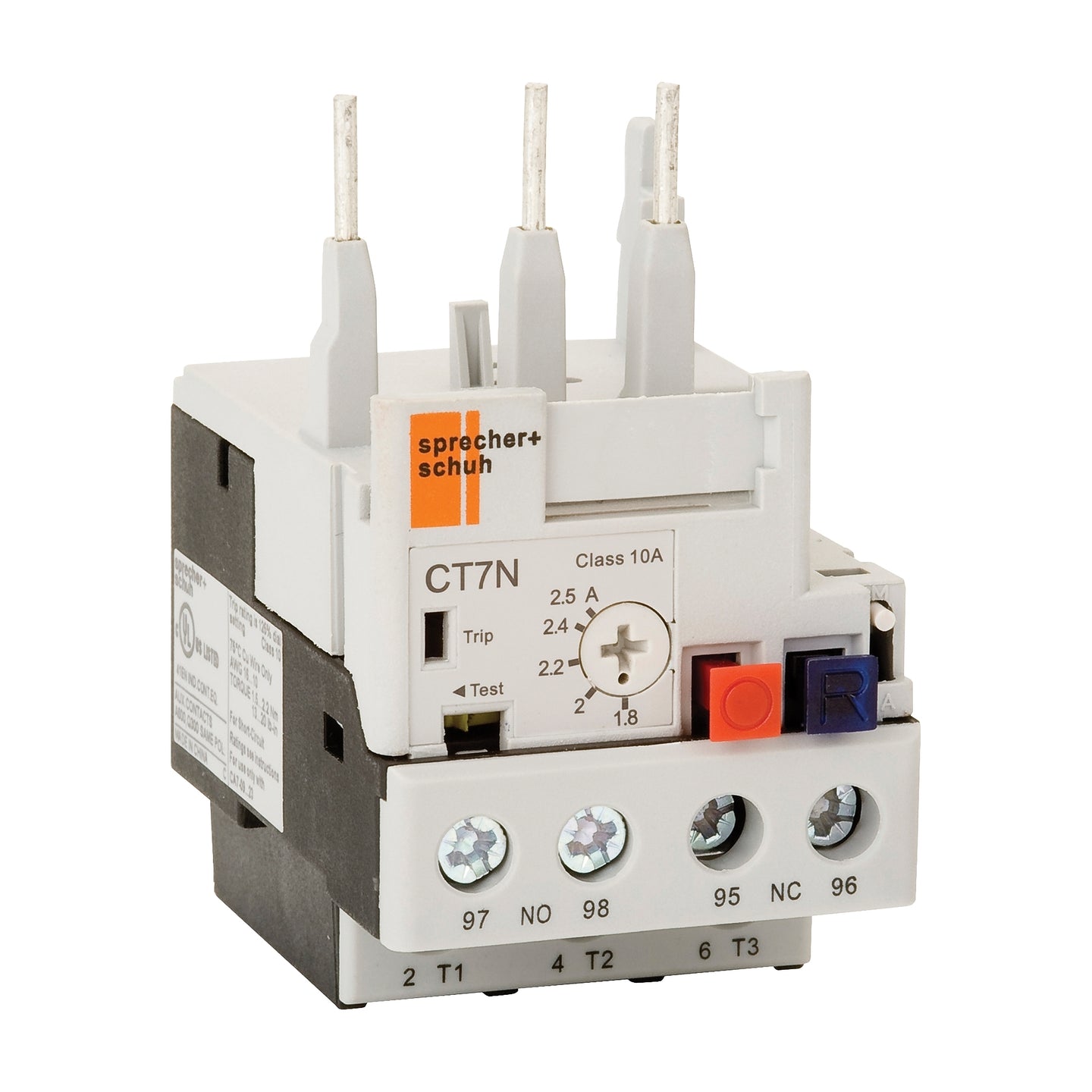

CT7N23C16 – Thermal Overload Relay, 11.3 to 16 A, Direct Mount for CA7 9A and 23A Contactors

SKU CT7N23C16
$80.00

Secure Payment & Return Policies
payments_badges

We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:

  1. Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.

  2. Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.

  3. Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.

  4. Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.

  5. Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.

  6. Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.

Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.

FAQs - Frequently Asked Questions
1. What are your accepted payment methods?
Shop, Shopify Payments, Paypal, and Google Pay. Other payments methods are also available during checkout.
2. How can I track my order?
After your order has been shipped, you will receive a shipping confirmation email with a tracking number. You can use this number to track your package on our website or through Sendle carrier.
3. I have a project, can tecnologia help me?
Yes! We have a dedicated team to assist you on your project. Contact us through contact page or email: contact@tecnologiashop.com.au
4. What is the availability of your products?
Together with our partners, we work with a flexible inventory, we have multiple distribution centre across Australia, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h before shipping.
5. Can I pick up my order? Where you're located?
Yes! We're located at Unit 5/37 Anzac Ave, Smeaton Grange NSW 2567. Note that this is NOT a physical store, please order online and collect when available for collection. We have multiple distribution centre, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h.
$80.00
Apply for a Business Credit Account
  • Important note:
    ⚠️ U.S. Tariff Update – Effective May 5
    Due to updated trade regulations, a U.S. tariff will be applied to all Dwyer products starting May 5, 2025.
    Orders placed before this date will not be affected.

  • Australia Post

    Express Parcel and Parcel Post available.

  • New Zealand

    We now ship to New Zeland

  • Contact us

    Our online team is ready to help you by chat and email!

  • Availability

    Check availability on the green button above.


SERIES CT7N Thermal Overload Relays

Description:
The S+S CT7N Thermal Overload Relays are reliable motor protection devices designed for IEC applications. Specifically engineered for direct mounting to Sprecher + Schuh CA7 Contactors (9A and 23A), these relays offer precise motor overload protection with an adjustable trip range from 11.3 to 16 A. Featuring both manual and automatic reset functions, the CT7N relays ensure flexibility in control and quick recovery from overload conditions. The built-in differential mechanism enhances protection by detecting phase-loss conditions, making them ideal for a variety of industrial motor control applications.

Benefits and Features:

  • Adjustable trip range from 11.3 to 16 A for tailored motor protection.

  • Dual reset modes: manual push-button and automatic.

  • Direct mount design compatible with CA7 9A and 23A contactors.

  • Differential mechanism ensures phase-loss sensitivity.

  • One normally open and one normally closed auxiliary contact for flexible integration.

Applications:

  • Motor overload protection in HVAC systems.

  • Industrial automation and machine control panels.

  • Conveyor systems and packaging equipment.

  • Pump and fan motor protection.

  • General-purpose motor protection in IEC environments.

Specifications:

  • Component Type: Thermal overload relay

  • Adjustable Current Range: 11.3 – 16 A

  • Release Class: CLASS 10 A

  • Max Rated Operating Voltage (Ue): 690 V

  • Auxiliary Contacts: 1 NO / 1 NC

  • Reset Functions: Manual (push-button) and automatic

  • Electrical Connection (Main Circuit): Screw connection

  • Mounting Method: Direct attachment to CA7 9A and 23A contactors

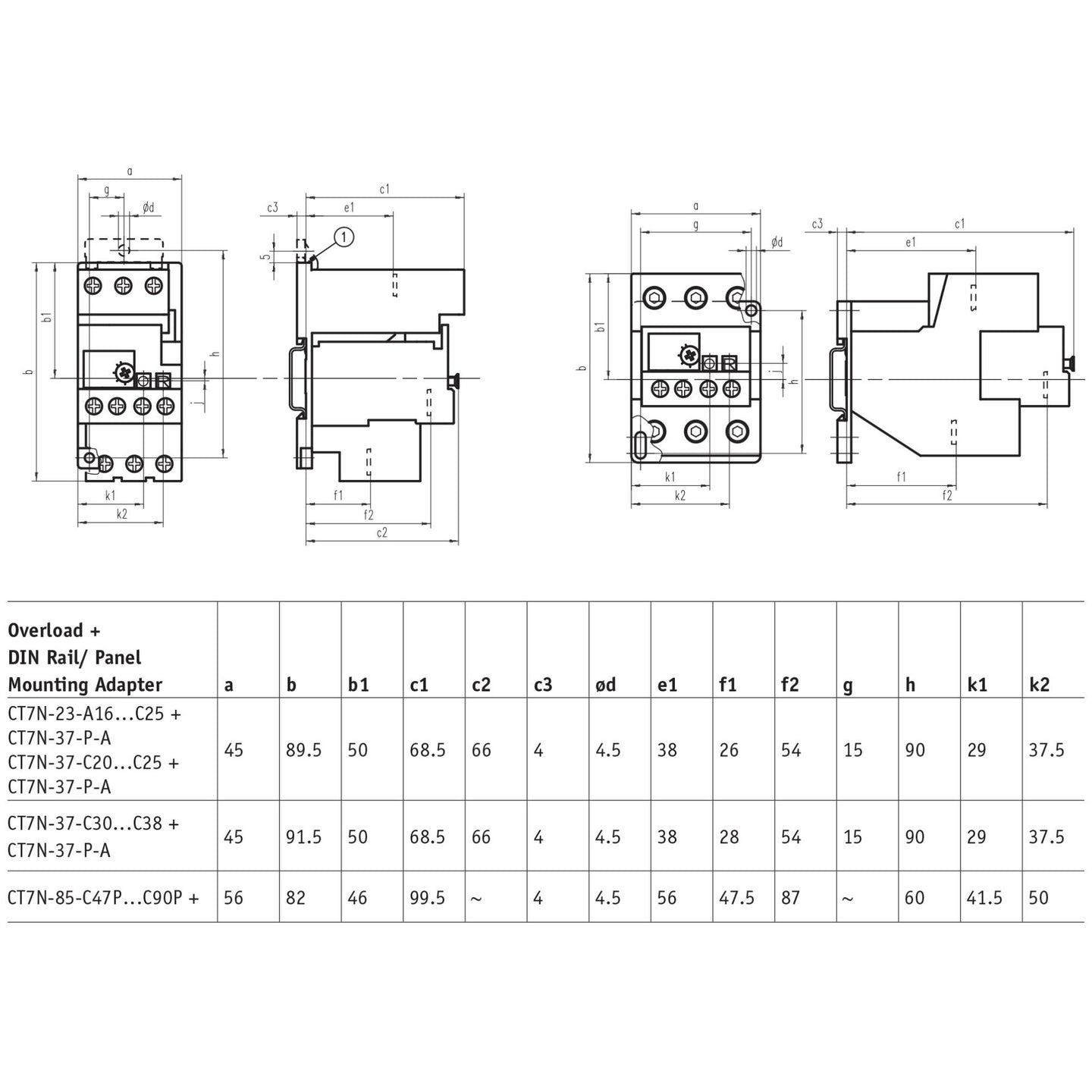

  • Dimensions (H x W x D): 75.5 x 45 x 63.5 mm

  • Weight: 0.12 kg

Part Number:
CT7N23C16 – Thermal Overload Relay, 11.3 to 16 A, Direct Mount for CA7 9A and 23A Contactors
