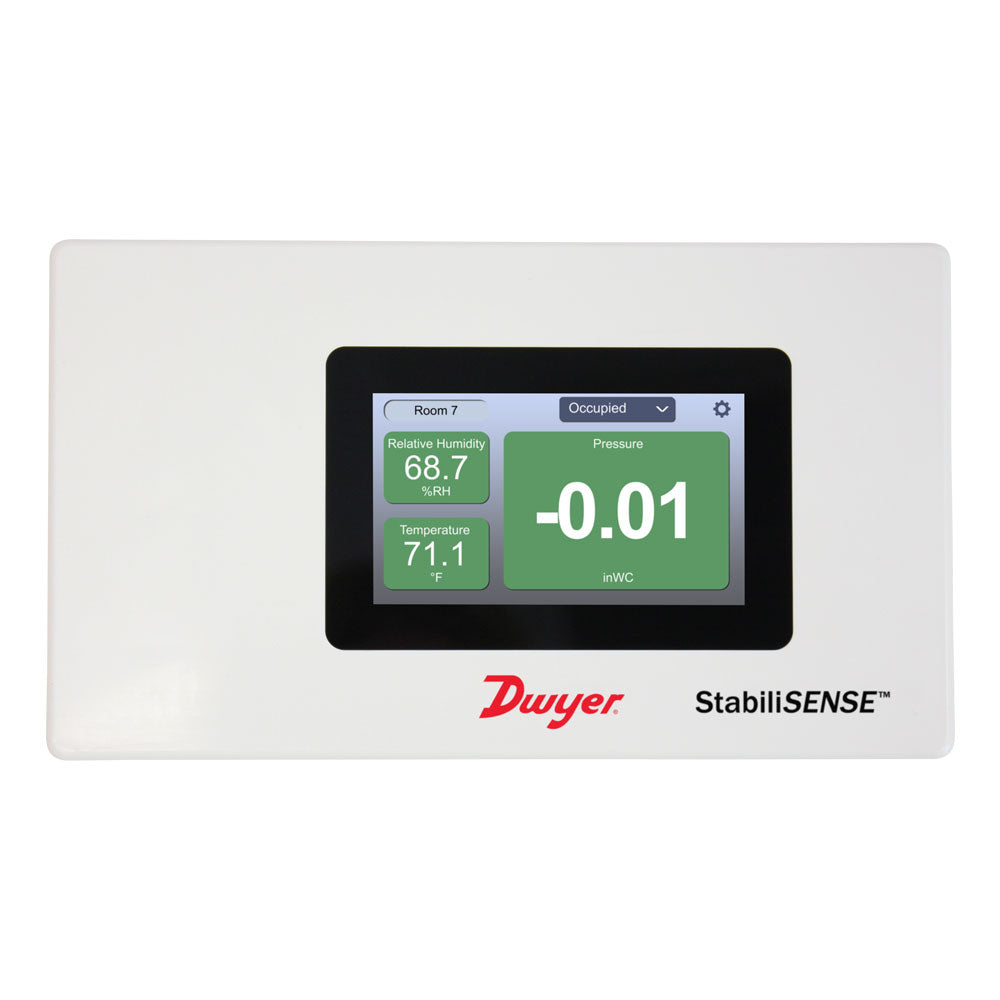

SERIES RSMC StabiliSENSE™ Critical Room Status Monitor
Description: The Series RSMC StabiliSENSE™ Critical Room Status Monitor is specifically engineered for critical low differential pressure applications demanding stringent pressure monitoring and alarming. Designed to monitor positive or negative pressure in environments like clean rooms, hospital isolation rooms, school nurse offices, laboratories, and vivariums, this monitor ensures precise environmental control.
Features and Benefits:
- Ensures long-term stable pressure measurements for critical environments.
- User-configurable graphical interface for intuitive operation.
- Monitors up to 3 rooms with a single unit, maximizing efficiency and cost-effectiveness.
- Displays up to 4 parameters including pressure, relative humidity, temperature, air change, and/or door status for comprehensive monitoring.
- Allows flush installation in walls with space constraints due to a shallow mounting depth of 1.1˝ (27.5 mm).
- Full-color 4.3˝ touchscreen LCD with color status indication: green for good, yellow for warning, and red for alarm, providing immediate visual alerts.
- Easy-to-clean optional brushed stainless steel bezel for enhanced durability and cleanliness.
- Supports BACnet MS/TP and Modbus® RTU communications for seamless integration into building management systems.
- Includes RSMC, junction box, factory calibration certificate, and USB-C/USB-A flash-drive for easy setup and operation.
Applications:
- Hospital isolation rooms
- Pharmaceutical facilities
- Dental offices
- School nurse offices
- Semiconductor manufacturing facilities
Specifications:
- Service: Air.
- Measurement Technology: Capacitance cell pressure sensor.
- Wetted Materials: Front - PMMA window with IP65 rating. Back housing - Fire-proof ABS+PC UL 94 V-0.
- Pressure Limits: 1.5 psig.
- Accuracy: ±0.25% RSS or ±0.5% RSS.
- Process Connection: Barbed, fits 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing.
- Inputs: Two (2) user-selectable 4-20 mA, 0-5 VDC, or 0-10 VDC; USB type C used for cloning programming; One (1) digital input for door status.
- Outputs: One (1) digital output (DO) rated 5 A @ 30 VDC; One (1) 4-20 mA or 0-10 V (user selectable) corresponding to internal pressure or retransmission of any input.
- Ambient Temperature Limits: 32 to 122°F (0 to 50°C).
- Power Requirements: 24 VAC/VDC.
- Selectable Pressure Units: Pa, kPa, cm w.c., mm w.c., and in w.c.
- Temperature Units: °F and °C.
- Zero and Span Adjustments: Adjustable via touchscreen.
- Power Consumption: 3.6 W @ 24 VDC.
- Electrical Connection: Removable terminal block.
- Display: 4.3˝ (10.9 cm) color TFT LCD, dimmable; 480 x 272 resolution.
- Communications: Modbus®️ RTU, BACnet MS/TP.
- Audible Alarm: 69.1 dB 10 cm from display.
- Weight: 1.05 lb (0.476 kg).
- Compliance: BTL, CE.
Part Numbers:
RSMC-A-002 Critical Room Status Monitor ±0.25% Accuracy 0 to 0.25 in w.c.plastic bezel
RSMC-A-003 Critical Room Status Monitor ±0.25% Accuracy 0 to 0.5 in w.c.plastic bezel
RSMC-A-004 Critical Room Status Monitor ±0.25% Accuracy 0 to 1.0 in w.c.plastic bezel
RSMC-A-013 Critical Room Status Monitor ±0.25% Accuracy -0.25 to 0.25 in w.c.plastic bezel
RSMC-A-014 Critical Room Status Monitor ±0.25% Accuracy -0.5 to 0.5 in w.c.plastic bezel
RSMC-A-015 Critical Room Status Monitor ±0.25% Accuracy -1.0 to 1.0 in w.c.plastic bezel
RSMC-B-002 Critical Room Status Monitor ±0.25% Accuracy 0 to 0.25 in w.c.plastic bezel
RSMC-B-003 Critical Room Status Monitor ±0.25% Accuracy 0 to 0.5 in w.c.plastic bezel
RSMC-B-004 Critical Room Status Monitor ±0.25% Accuracy 0 to 1.0 in w.c.plastic bezel
RSMC-B-013 Critical Room Status Monitor ±0.25% Accuracy -0.25 to 0.25 in w.c.plastic bezel
RSMC-B-014 Critical Room Status Monitor ±0.25% Accuracy -0.5 to 0.5 in w.c.plastic bezel
RSMC-B-015 Critical Room Status Monitor ±0.25% Accuracy -1.0 to 1.0 in w.c.plastic bezel
A-RSMC-BOX Dry Wall Installation Box
Please refer to the datasheet to check models capabilities.
Need help to order a specific Part-Number? Contact Us!
