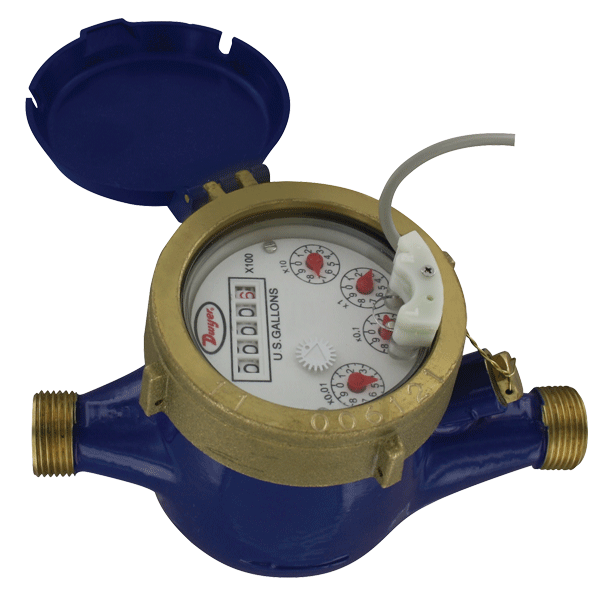

Dwyer - Water Meter, cold water - WMT2 Series

WMT2 Series Datasheet

When it comes to measuring water usage in commercial and industrial settings, the Dwyer WMT2 Series Multi-Jet Water Meter stands out as a pinnacle of accuracy and reliability. With a focus on simplicity, accuracy, and long-term performance, this water meter is the perfect solution for a wide range of applications. Let's delve into its exceptional features:

Key Specifications:

• Service: Specifically designed for water, ensuring accurate measurement for this vital resource.

• Wetted Materials: Crafted with quality materials, including brass, polyethylene, and ABS plastic, to maintain integrity in contact with water.

• Flow Range: Boasting a versatile flow range, making it suitable for various scenarios. Refer to the model chart for specific details.

• Accuracy: Providing precise measurements, with a transitional flow accuracy of ±5% and a nominal flow accuracy of ±2%.

• Temperature Limit: Capable of handling water temperatures up to 104°F (40°C).

• Pressure Limit: With a substantial pressure limit of 232 psi (16 bar), it can withstand demanding conditions.

• Pressure Drop: Reference the pressure drop chart to understand the meter's performance under different pressure conditions.

• Totalizing Display Maximum: The model chart offers insights into the maximum totalizing display.

• Output Signal: Equipped with a pulse output, with a frequency that directly corresponds to the flow rate. Pulse options include 0.1 gal, 1 gal, 10 gal, and 100 gal per pulse (1 L, 10 L, 100 L per pulse).

• Electrical Rating: Efficiently operates at 0.01 A @ 24 VAC/DC, ensuring minimal energy consumption.

• Electrical Connections: Facilitated by color-coded lead wires, each 4.5 feet (1.5 meters) long.

• Mounting Orientation: Designed for horizontal installation, with the register face up, ensuring ease of reading and accessibility.

• Durable Build: The hermetically sealed register, driven by a magnetic mechanism, guarantees leak-free, fog-free, and water-separation performance.

• Longevity and Low Maintenance: These water meters are built to last, offering extended service life and hassle-free operation.

Installation Instructions:

To ensure optimal performance, follow these installation steps:

1. Thoroughly flush the service line upstream of the meter to remove any debris or contaminants.

2. Remove the meter spud thread protectors, but keep them for storage if necessary.

3. Install the meter in a horizontal position, with the register upright and accessible for reading, servicing, and inspection. Flow direction is indicated by arrows on the meter.

4. Maintain the tap height higher than the meter for accurate measurements.

5. Avoid over-tightening connections; tighten only as needed for a proper seal. Do not use pipe sealant tape on meter threads.

6. If you have an upstream shut-off valve only, open it slowly to remove air from the meter and service line. Open a faucet gradually to release any entrapped air, then close the faucet.

7. With both upstream and downstream shut-off valves installed, follow the same procedure to ensure accurate meter filling and air release. Test the installation for any potential leaks and address them accordingly.

Experience water measurement excellence with the Dwyer WMT2 Series Water Meter. It's your dependable choice for precise, long-lasting performance in various applications. Dwyer Instruments, setting industry standards for quality and accuracy.

Please refer to the datasheet to check models capabilities.
