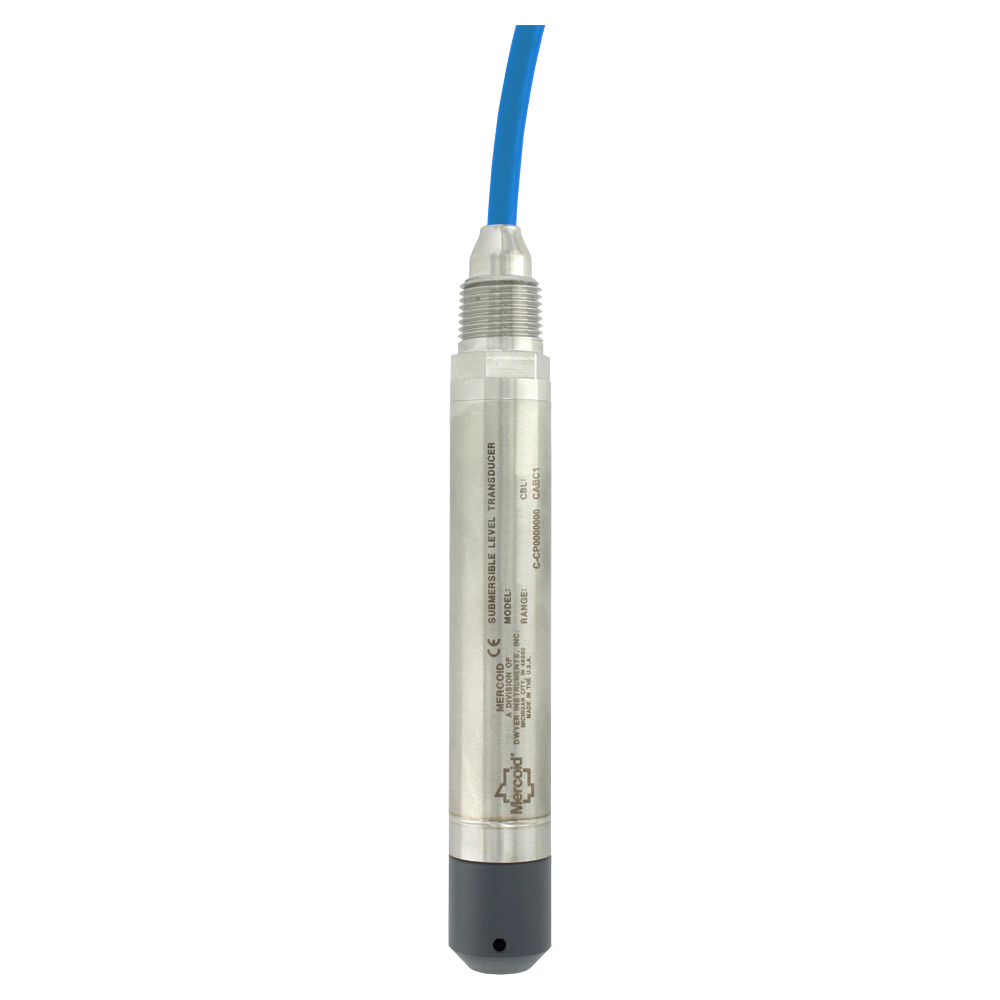

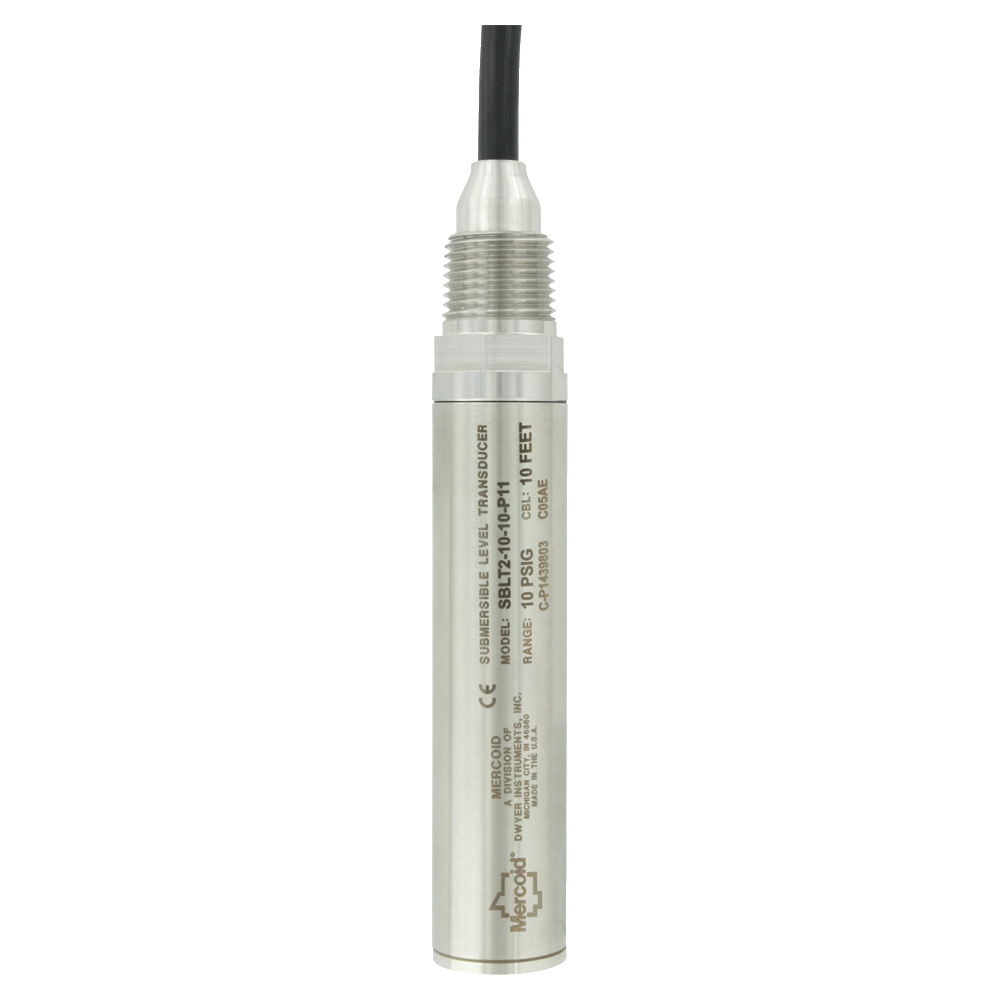

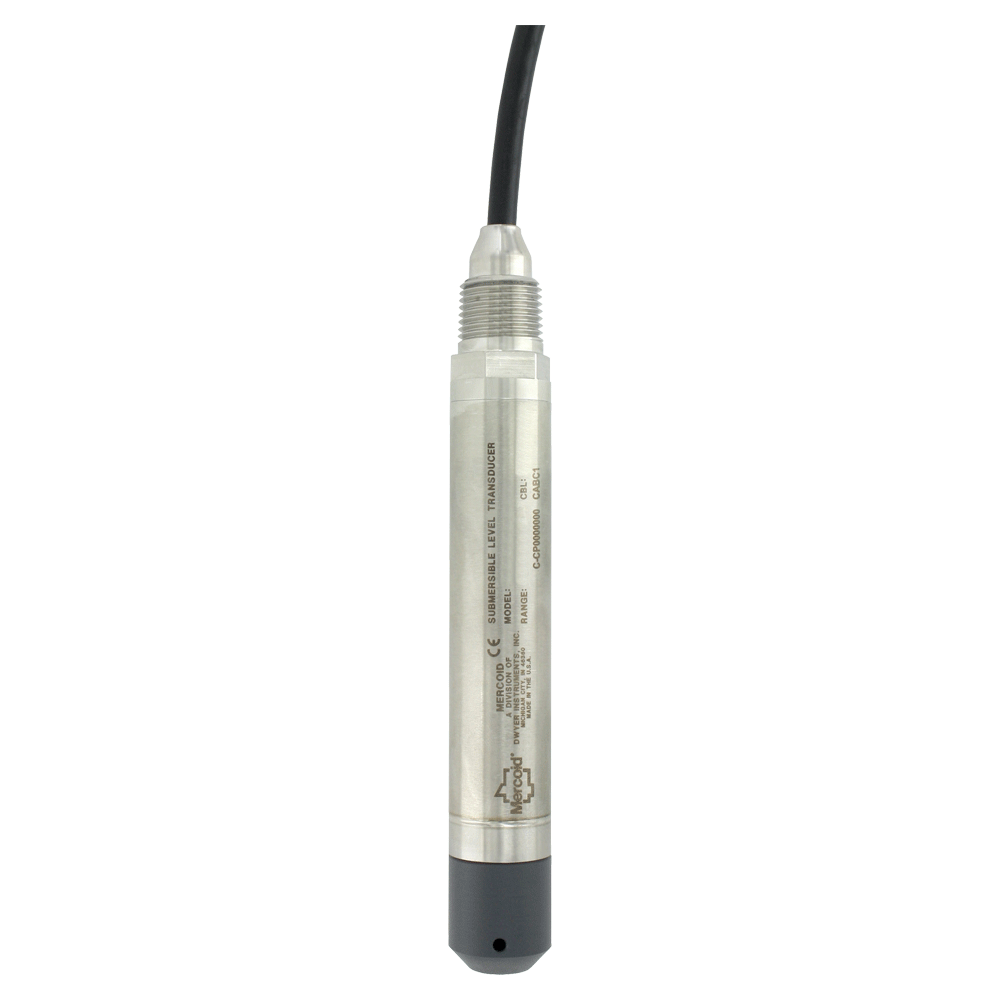

SERIES SBLT2 & SBLTX MercoID Submersible Level Transmitters
Description: The Series SBLT2 & SBLTX Submersible Level Transmitters are engineered for long-term reliability and accuracy in measuring liquid levels in various applications. These transmitters precisely gauge the height of liquid above the tank reference point, providing crucial data for monitoring and control systems. Featuring a slim design with a bullet nose for protection, these transmitters ensure durability even in tight spaces.
Features and Benefits:
- Slim design with a bullet nose protects the diaphragm from damage, ideal for tight applications.
- Incorporates lightning and surge protection with dual arrestor technology, grounded to the case, ensuring safety from power supply surges and lightning ground strike transients (surge protection not guaranteed and not covered by warranty) on SBLT2 models.
- Maintenance-free filter eliminates particulate or water droplets from entering and damaging the transducer, ensuring trouble-free operation.
- UL approved intrinsically safe on SBLTX models for hazardous locations when used with proper barriers, enhancing safety in critical environments.
- Excellent chemical compatibility for a wide range of applications, ensuring reliable performance in various liquid environments.

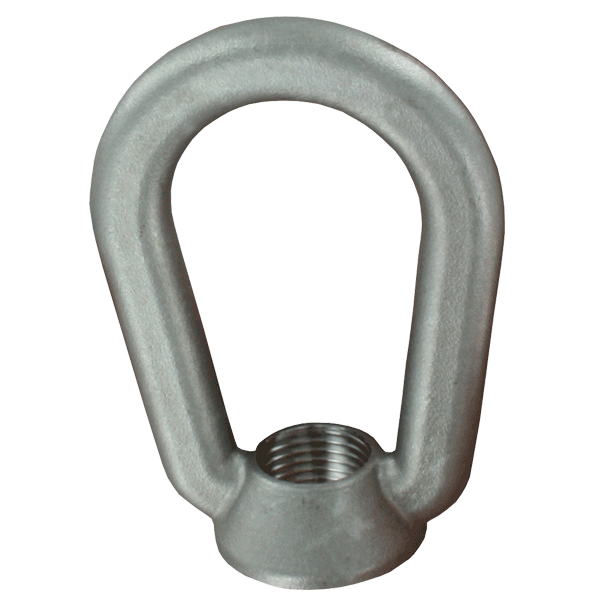

- NPT connection allows rigid installation in a pipe/conduit or addition of an A-625 hanging loop for easy extraction from the installation.
- Standard 72-hour lead time ensures minimal downtime, facilitating quick replacements and installations.
Applications:
- Air economizers
- Outdoor temperature and relative humidity reference for building systems
- Well monitoring
- Groundwater monitoring
- Environmental remediation
- Surface water monitoring
- Downhole
- Water tanks
Specifications:
- Service: Compatible liquids.
- Wetted Materials: Body: 316 SS, 316 L SS; Bullet nose: PVC; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer.
- Accuracy: ±0.25% FS*.
- Temperature Limit: See specifications for temperature ranges.
- Compensated Temperature Range: See specifications for temperature ranges.
- Thermal Effect: ±0.02% FS/°F.
- Pressure Limit: 2X FS.
- Power Requirement: SBLT2: 10-30 VDC; SBLTX: 10-28 VDC.
- Output Signal: 4-20 mA DC, 2-wire.
- Response Time: 50 ms.
- Max. Loop Resistance: 900 Ω at 30 VDC.
- Electrical Connection: Wire pigtail.
- Mounting Orientation: Suspended in tank below the level being measured.
- Electrical Protection: SBLT2: Lightning and surge protection; SBLTX: None.
- Weight: 2.2 lb (1.0 kg).
- Agency Approvals: SBLT2: CE; SBLTX: CE, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III Div. 1; ATEX: II 1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da.
Part Numbers:
SBLT2-5-40 Level Transmitter Clean Water Range 5psi (3.52m) Cable 40ft (12.2m) Polyurethane Cable
SBLT2-10-40 Level Transmitter Clean Water Range 10psi (7.04m) Cable 40ft (12.2m) Polyurethane Cable
SBLT2-15-60 Level Transmitter Clean Water Range 15psi (10.56m) Cable 60ft (18.3m) Polyurethane Cable
SBLT2-20-60 Level Transmitter Clean Water Range 20psi (14.08m) Cable 60ft (18.3m) Polyurethane Cable
SBLT2-3.5M-5M Level Transmitter Clean Water Metric Range 3.5m Cable 5m
SBLT2-5M-10M Level Transmitter Clean Water Metric Range 5m Cable 10m
SBLT2-10M-18M Level Transmitter Clean Water Metric Range 10m Cable 18m
Please refer to the datasheet to check models capabilities.
