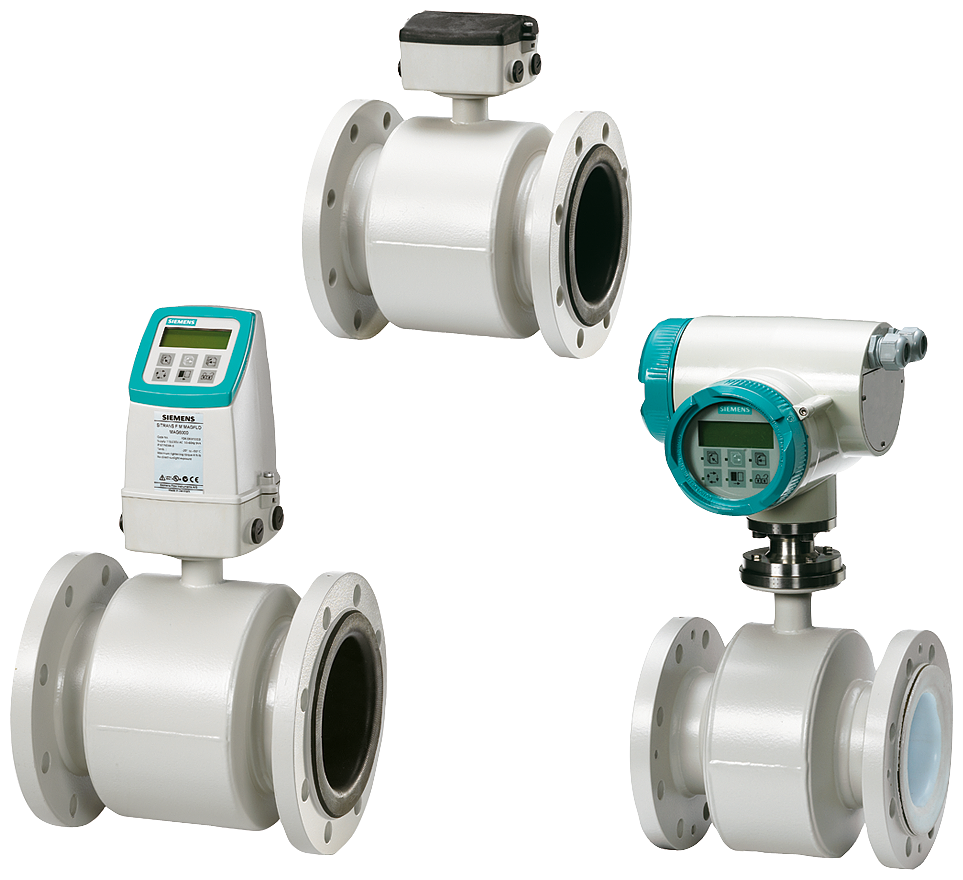

The Siemens SITRANS FM MAG 5100 W is an electromagnetic flow sensor that sets the benchmark in water management. Designed to excel in applications ranging from ground water to drinking water, waste water to sewage, and even sludge, it's your trusted partner for precision flow measurement.

Key Benefits:

  • Versatile Sizing: Covering a range from DN 15 to DN 1200/2000 (½" to 48"/78"), this flow sensor adapts to various applications seamlessly.

  • Quick Availability: The stock program of MAG 5100 W ensures prompt delivery, minimizing downtime.

  • Multiple Flange Options: With connection flanges that meet EN 1092-1 (DIN 2501), ANSI, AWWA, AS, and JIS standards, this sensor suits diverse installations.

  • Liner Choices: The sensor features NBR Hard Rubber, Ebonite Hard Rubber liner for water applications, and EPDM liner with drinking water approvals, providing the versatility needed in water management.

  • Grounding and Measuring Excellence: Hastelloy integrated grounding and measuring electrodes ensure high precision.

  • Low Flow Accuracy: The coned liner design enhances low flow accuracy, making it ideal for water leak detection.

  • Comprehensive Approvals: With drinking water approvals, custody transfer options, and FM Fire Service Meter (Class Number 1044) certification, it meets stringent industry standards.

  • Built-in Length: Conforming to ISO 20456, the standard covers sizes up to DN 400, guaranteeing reliable flow measurement.

  • Effortless Commissioning: The SENSORPROM unit automatically uploads calibration values and settings, simplifying the setup process.

  • In-Situ Verification: It's designed for patented in-situ verification using the SENSORPROM fingerprint, ensuring accuracy.

  • Custody Transfer Ready: Suitable for water billing, with type approval after OIML R 49 and verified according to MI-001 - 0D inlet/0D outlet installation.

  • EEC Directive Compliance: Adheres to EEC directives, including PED 2014/68/EU pressure directive for EN 1092-1 flanges.

  • Upgrade Option: Offers simple onsite or factory upgrades to IP68/NEMA 6P for standard sensors.

  • Marine Equipment Approval: Holds type approval for marine equipment by ABS, Bureau Veritas, DNV-GL, and Lloyd's Register.

Applications:

The Siemens SITRANS FM MAG 5100 W Flow Sensor is a versatile solution for:

  • Water Abstraction: Ensures accurate measurement in water collection processes.

  • Water Treatment: Crucial for precise flow monitoring in water treatment facilities.

  • Water Distribution Network: Aids in leak detection management, ensuring efficient distribution.

  • Custody Transfer Water Meters: Ideal for billing and custody transfer purposes.

  • Irrigation: Maintains precise flow control for irrigation systems.

  • Waste Water Treatment: Essential for monitoring and managing wastewater flow.

  • Filtration Plant: Ideal for applications like reverse osmosis and ultrafiltration in filtration plants.

  • Industrial Water Applications: Suitable for various industrial water management needs.

How It Works:

The Siemens SITRANS FM MAG 5100 W operates on Faraday's law of electromagnetic induction, where the flow sensor converts the flow into an electrical voltage that's directly proportional to the flow velocity. This results in highly accurate and consistent flow measurements.

Seamless Integration:

The complete flow meter includes a flow sensor and a transmitter like SITRANS FM MAG 5000, MAG 6000, or MAG 6000 I. Its flexible communication concept, USM II, simplifies integration and allows updates to various fieldbus systems, including HART, DeviceNet, PROFIBUS DP and PA, FOUNDATION Fieldbus H1, and Modbus RTU/RS 485.

Part Numbers:
SBT7ME6520-2YC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN50 PN16 -10…+70°C EPDM Liner
SBT7ME6520-3FC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN65 PN16 -10…+70°C EPDM Liner
SBT7ME6520-3MC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN80 PN16 -10…+70°C EPDM Liner
SBT7ME6520-3TC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN100 PN16 -10…+70°C EPDM Liner
SBT7ME6520-4BC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN125 PN16 -10…+70°C EPDM Liner
SBT7ME6520-4HC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN150 PN16 -10…+70°C EPDM Liner
SBT7ME6520-4PC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN200 PN16 -10…+70°C EPDM Liner
SBT7ME6520-4VC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN250 PN16 -10…+70°C EPDM Liner
SBT7ME6520-5DC12-2AA1 Sitrans Magflo Meter CHW MAG5100W DN300 PN16 -10…+70°C EPDM Liner
