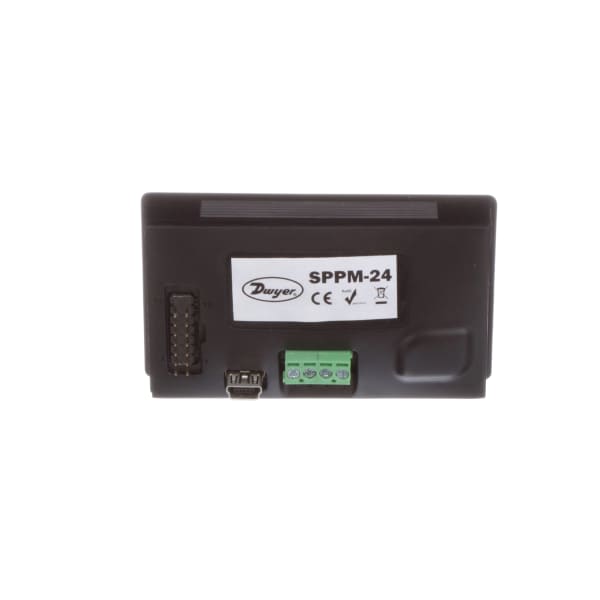

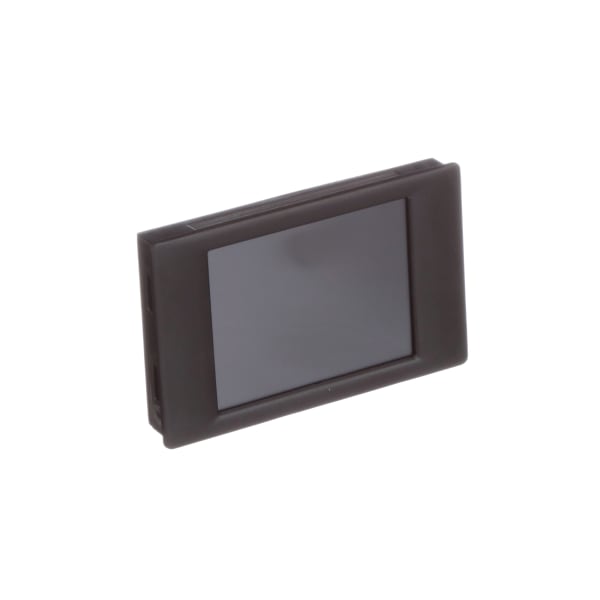

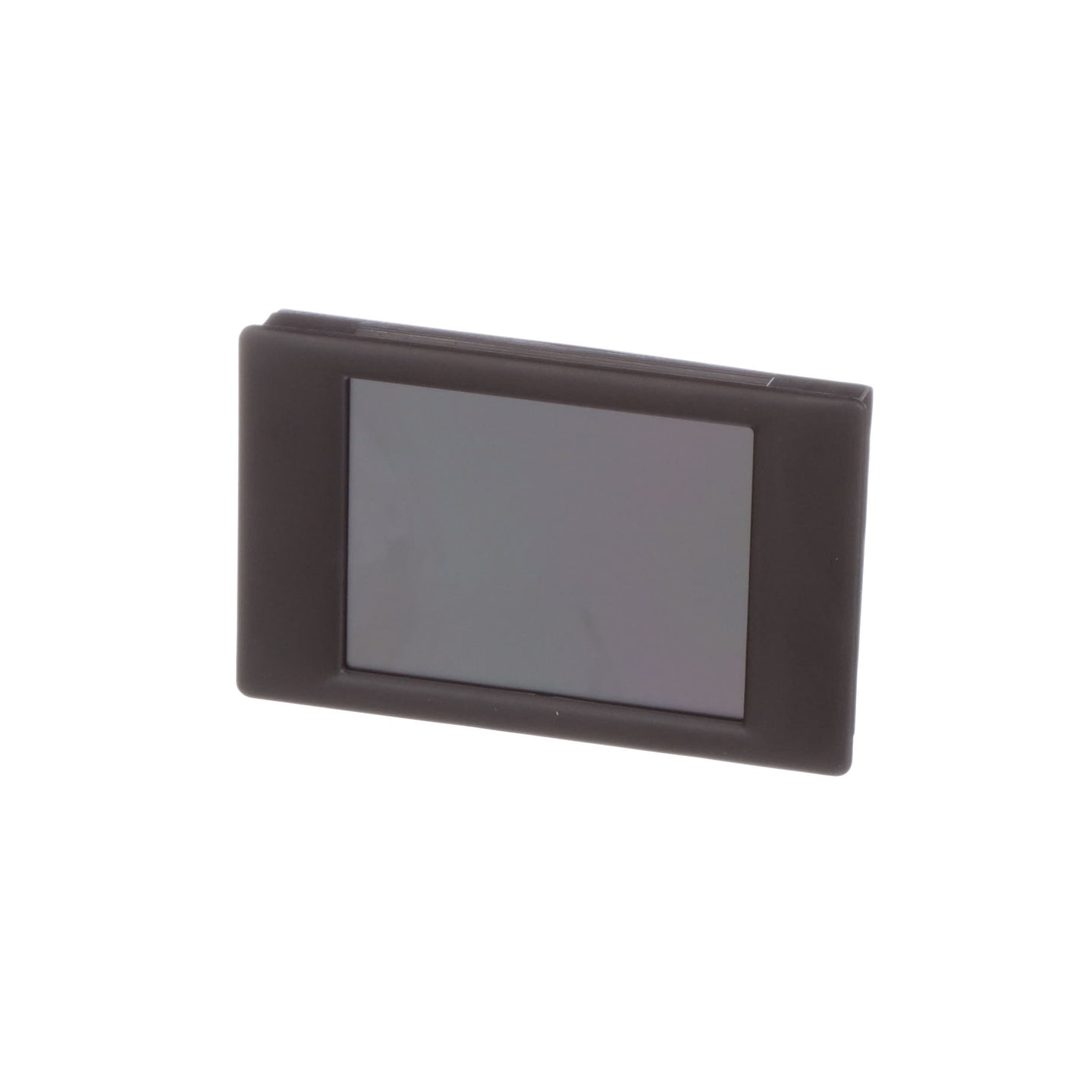

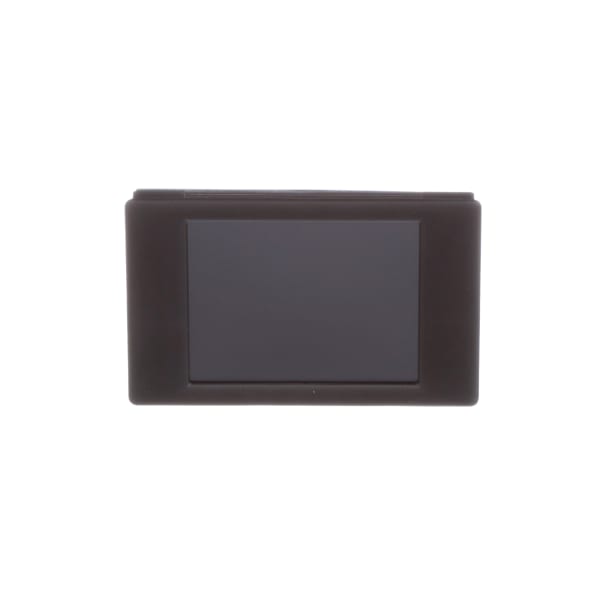

SERIES SPPM Smart Programmable Panel Meters

Description: The Series SPPM Smart Programmable Panel Meters are versatile full-color touch screen displays designed for various applications. These panel meters feature a 16-bit color touch screen display and can be easily configured using downloadable software compatible with Windows®-based computers via a USB connection. The displays offer customizable graphics for reading and graphing parameters such as pressure, temperature, humidity, gas concentration, and more.

Features and Benefits:

  • Available with 2.4˝, 2.8˝, or 3.5˝ color touch screen display options.
  • Free downloadable Windows® software enables customization for specific applications.
  • Fully field configurable for ease of use and adaptability.

Applications:

  • Tank level monitoring.
  • Power monitoring.
  • Room pressurization conditions.
  • Indoor air quality monitoring.

Specifications:

  • Inputs: Current: 0-50 mA, scalable (factory set from 4-20 mA); Voltage: 0-40 VDC, scalable (factory set from 0-10 V).
  • Accuracy: 0.1%.
  • Resolution: 0.3 to 9.8 mV (depending on input range).
  • Power Supply: 4-30 VDC max or via USB.
  • Current Consumption: 190 mA max.
  • Display: 2.4˝, 2.8˝, or 3.5˝ TFT full-color touch screen.
  • Display Resolution: 320 x 240 pixels.
  • Sampling Rate: 3 samples/s.
  • Temperature Limits: 32 to 104°F (0 to 40°C).
  • Warm Up: 30 s.
  • Mounting: Panel mount.
  • Electrical Connection: Screw terminals, pin connection, or USB.
  • Computer Requirements: Compatible with Windows® 7, Windows® 8, and Windows® 10.
  • Weight: 2.8 oz (79.4 g).
  • Compliance: CE.

Additional Specifications (for SPPM-HSG and A-SPPM-TC variants):

  • SPPM-HSG:

    • Service: Indoor or outdoor.
    • Material: Painted aluminum or glass.
    • Enclosure Rating: NEMA 4X (IP66).

  • A-SPPM-TC:

    • Probe Measurement Range: K-type: -328 to 2462°F (-200 to 1350°C); J-type: -328 to 2174°F (-200 to 1190°C); T-type: -328 to 734°F (-200 to 390°C).
    • Temperature Limits: 14 to 104°F (-10 to 40°C).
    • Resolution: 1.0°F (0.5°C).
    • Power Requirements: Powered by USB port through SPPM panel meter.
    • Accuracy: ±2.0°F (±1.0°C).
    • Weight: 0.9 oz (25.5 g).
    • Compliance: CE.

Part Numbers:

SPPM-24 Smart Panel Meter 2.4" Display DC powered 2 voltage inputs
SPPM-28 Smart Panel Meter 2.8" Display DC powered 2 voltage inputs
SPPM-35 Smart Panel Meter 3.5" Display DC powered 2 voltage inputs
SPPM-24-C Smart Panel Meter 2.4" Display DC powered 1 current input
SPPM-28-C Smart Panel Meter 2.8" Display DC powered 1 current input
SPPM-35-C Smart Panel Meter 3.5" Display DC powered 1 current input
SPPM-TC SPPM Thermocouple Input Board
SPPM-CA Mini USB to Full USB converter
SPPM-HSG24 SPPM 2.4" Display Housing
SPPM-HSG28 SPPM 2.8" Display Housing

Please refer to the datasheet to check models capabilities.
