Series TE Duct and Immersion Building Automation Temperature Sensors

Benefits/Features:

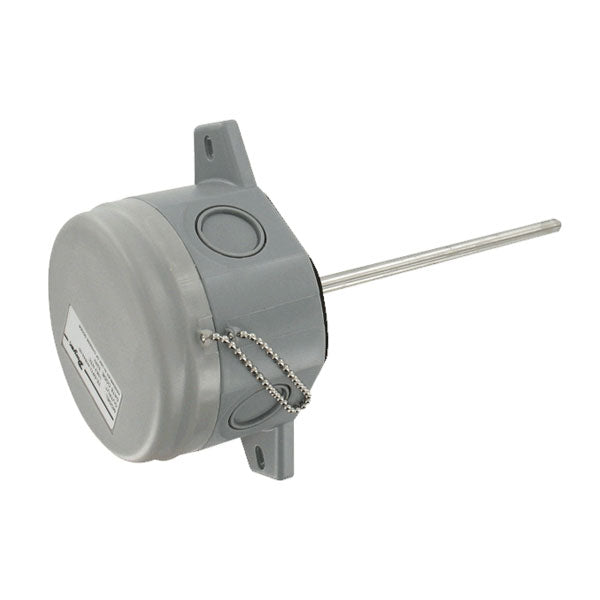

  • Easy Installation: Featuring external tab housing and flange options for duct applications, simplifying mounting.
  • Secure Design: Equipped with a 1/4 turn housing cover with a chain to prevent accidental dropping.
  • Convenient Installation: Multiple conduit knockouts enable easy positioning during installation.

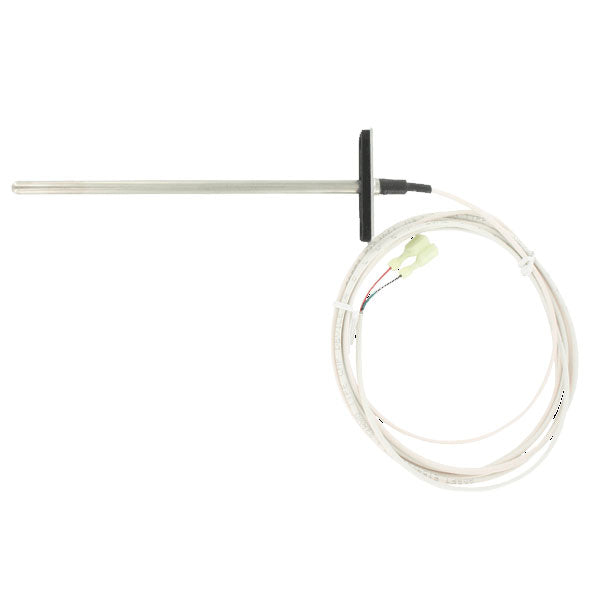

  • Flexible Cable Options: Available with an 8' plenum-rated cable option for versatile placement.
  • Efficient Connectivity: Terminal connector design eliminates the need for wire nuts, streamlining installation.

Applications:

  • Building Automation: Ideal for integrating into building management systems for efficient temperature monitoring.
  • VAV Temperature Sensing: Suitable for Variable Air Volume systems to maintain optimal environmental conditions.
  • Chiller or Boiler Loops: Helps in monitoring and regulating temperature in chiller or boiler loops for effective operation.
  • AHU Monitoring: Facilitates Air Handling Unit monitoring to ensure proper ventilation and temperature control.

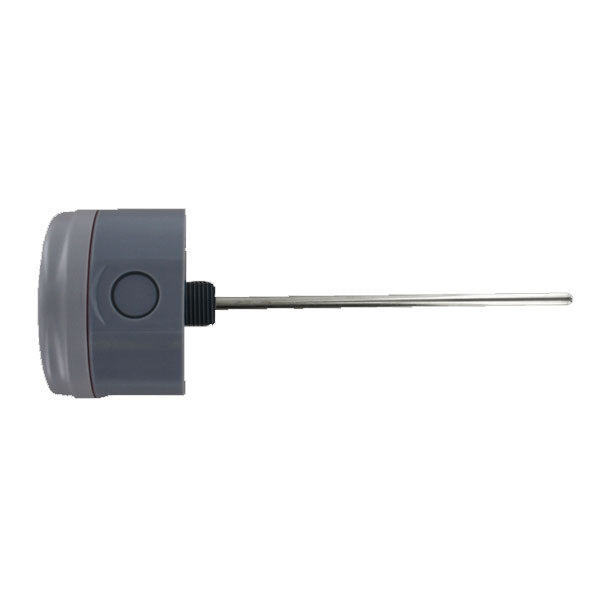

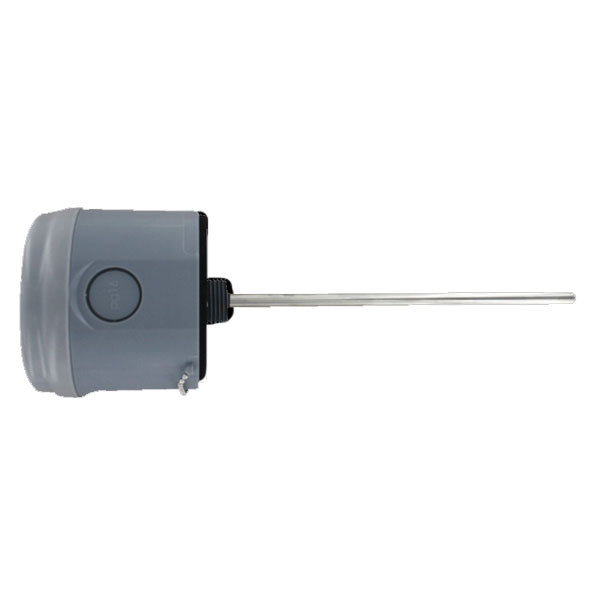

Description: The Series TE Duct and Immersion Building Automation Temperature Sensors offer precise monitoring of air or water temperature within building management systems or air handler units. With options for duct or immersion applications, these sensors provide versatility for various needs, with or without an enclosure.

Specifications:

  • Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
  • Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
  • Sensor Curves: Refer to the website for Resistance vs. Temperature Table.
  • Cable Rating: Plenum option includes UL listed plenum cable.
  • Housing Material: Constructed with UL 94 V-0 rated polycarbonate plastic for durability.
  • Housing Rating: NEMA 4X (IP66) (DFW, IBW only).
  • Weight: 5.3 oz (150.3 g).
  • Compliance: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

This product ensures accurate temperature sensing, easy installation, and reliable performance, making it an indispensable component for building automation systems and HVAC applications.

Example of order:
Series TE-IBN-A0444-12 Immersion Probe, 10K type 3 thermistor, 4" probe length, 1/4" probe diameter, 4" flying leads, with 1/2" NPT connection.

Part Numbers:

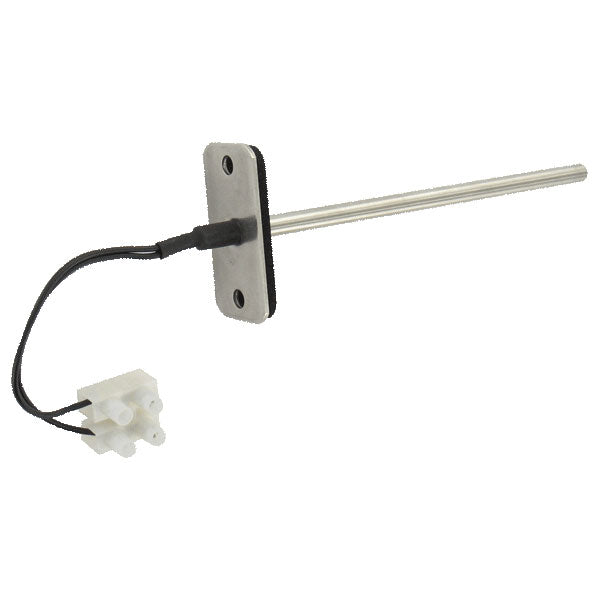

 TE-DFN-A2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable 10K Ohm Type III
TE-DFN-B2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable 10K Ohm Type II
TE-DFN-C2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable 3K Ohm
TE-DFN-D2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable Pt100 Ohm RTD
TE-DFN-E2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable Pt1000 Ohm RTD
TE-DFN-F2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable 20K Ohm
TE-DFN-Q2548-00 Temp Sensor Duct Probe Only 2.5" 8' Cable 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0448-00 Temp Sensor Duct Probe Only 4" 8' Cable 10K Ohm Type III
TE-DFN-B0448-00 Temp Sensor Duct Probe Only 4" 8' Cable 10K Ohm Type II
TE-DFN-C0448-00 Temp Sensor Duct Probe Only 4" 8' Cable 3K Ohm Thermistor
TE-DFN-D0448-00 Temp Sensor Duct Probe Only 4" 8' Cable Pt100 Ohm RTD
TE-DFN-E0448-00 Temp Sensor Duct Probe Only 4" 8' Cable Pt1000 Ohm RTD
TE-DFN-F0448-00 Temp Sensor Duct Probe Only 4" 8' Cable 20K Ohm
TE-DFN-Q0448-00 Temp Sensor Duct Probe Only 4" 8' Cable 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0648-00 Temp Sensor Duct Probe Only 6" 8' Cable 10K Ohm Type III
TE-DFN-B0648-00 Temp Sensor Duct Probe Only 6" 8' Cable 10K Ohm Type II
TE-DFN-C0648-00 Temp Sensor Duct Probe Only 6" 8' Cable 3K Ohm
TE-DFN-D0648-00 Temp Sensor Duct Probe Only 6" 8' Cable Pt100 Ohm RTD
TE-DFN-E0648-00 Temp Sensor Duct Probe Only 6" 8' Cable Pt1000 Ohm RTD
TE-DFN-F0648-00 Temp Sensor Duct Probe Only 6" 8' Cable 20K Ohm
TE-DFN-Q0648-00 Temp Sensor Duct Probe Only 6" 8' Cable 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0848-00 Temp Sensor Duct Probe Only 8" 8' Cable 10K Ohm Type III
TE-DFN-B0848-00 Temp Sensor Duct Probe Only 8" 8' Cable 10K Ohm Type II
TE-DFN-C0848-00 Temp Sensor Duct Probe Only 8" 8' Cable 3K Ohm
TE-DFN-D0848-00 Temp Sensor Duct Probe Only 8" 8' Cable Pt100 Ohm RTD
TE-DFN-E0848-00 Temp Sensor Duct Probe Only 8" 8' Cable Pt1000 Ohm RTD
TE-DFN-F0848-00 Temp Sensor Duct Probe Only 8" 8' Cable 20K Ohm
TE-DFN-Q0848-00 Temp Sensor Duct Probe Only 8" 8' Cable 210K Ohm Type III with 11K Ohm Shunt

TE-DFN-A1248-00 Temp Sensor Duct Probe Only 12" 8' Cable 10K Ohm Type III
TE-DFN-B1248-00 Temp Sensor Duct Probe Only 12" 8' Cable 10K Ohm Type II
TE-DFN-C1248-00 Temp Sensor Duct Probe Only 12" 8' Cable 3K Ohm
TE-DFN-D1248-00 Temp Sensor Duct Probe Only 12" 8' Cable Pt100 Ohm RTD
TE-DFN-E1248-00 Temp Sensor Duct Probe Only 12" 8' Cable Pt1000 Ohm RTD
TE-DFN-F1248-00 Temp Sensor Duct Probe Only 12" 8' Cable 20K Ohm
TE-DFN-Q1248-00 Temp Sensor Duct Probe Only 12" 8' Cable 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A1848-00 Temp Sensor Duct Probe Only 18" 8' Cable 10K Ohm Type III
TE-DFN-B1848-00 Temp Sensor Duct Probe Only 18" 8' Cable 10K Ohm Type II
TE-DFN-C1848-00 Temp Sensor Duct Probe Only 18" 8' Cable 3K Ohm
TE-DFN-D1848-00 Temp Sensor Duct Probe Only 18" 8' Cable Pt100 Ohm RTD
TE-DFN-E1848-00 Temp Sensor Duct Probe Only 18" 8' Cable Pt1000 Ohm RTD
TE-DFN-F1848-00 Temp Sensor Duct Probe Only 18" 8' Cable 20K Ohm
TE-DFN-Q1848-00 Temp Sensor Duct Probe Only 18" 8' Cable 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A2544-00 Temp Sensor Duct Probe Only 2.5" 10K Ohm Type III
TE-DFN-B2544-00 Temp Sensor Duct Probe Only 2.5" 10K Ohm Type II
TE-DFN-C2544-00 Temp Sensor Duct Probe Only 2.5" 3K Ohm
TE-DFN-D2544-00 Temp Sensor Duct Probe Only 2.5" Pt100 Ohm RTD
TE-DFN-E2544-00 Temp Sensor Duct Probe Only 2.5" Pt1000 Ohm RTD
TE-DFN-F2544-00 Temp Sensor Duct Probe Only 2.5" 20K Ohm
TE-DFN-Q2544-00 Temp Sensor Duct Probe Only 2.5" 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0444-00 Temp Sensor Duct Probe Only 4" 10K Ohm Type III
TE-DFN-B0444-00 Temp Sensor Duct Probe Only 4" 10K Ohm Type II
TE-DFN-C0444-00 Temp Sensor Duct Probe Only 4" 3K Ohm Thermistor
TE-DFN-D0444-00 Temp Sensor Duct Probe Only 4" Pt100 Ohm RTD
TE-DFN-E0444-00 Temp Sensor Duct Probe Only 4" Pt1000 Ohm RTD
TE-DFN-F0444-00 Temp Sensor Duct Probe Only 4" 20K Ohm
TE-DFN-Q0444-00 Temp Sensor Duct Probe Only 4" 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0644-00 Temp Sensor Duct Probe Only 6" 10K Ohm Type III
TE-DFN-B0644-00 Temp Sensor Duct Probe Only 6" 10K Ohm Type II
TE-DFN-C0644-00 Temp Sensor Duct Probe Only 6" 3K Ohm
TE-DFN-D0644-00 Temp Sensor Duct Probe Only 6" Pt100 Ohm RTD
TE-DFN-E0644-00 Temp Sensor Duct Probe Only 6" Pt1000 Ohm RTD
TE-DFN-F0644-00 Temp Sensor Duct Probe Only 6" 20K Ohm
TE-DFN-Q0644-00 Temp Sensor Duct Probe Only 6" 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A0844-00 Temp Sensor Duct Probe Only 8" 10K Ohm Type III
TE-DFN-B0844-00 Temp Sensor Duct Probe Only 8" 10K Ohm Type II
TE-DFN-C0844-00 Temp Sensor Duct Probe Only 8" 3K Ohm
TE-DFN-D0844-00 Temp Sensor Duct Probe Only 8" Pt100 Ohm RTD
TE-DFN-E0844-00 Temp Sensor Duct Probe Only 8" Pt1000 Ohm RTD
TE-DFN-F0844-00 Temp Sensor Duct Probe Only 8" 20K Ohm
TE-DFN-Q0844-00 Temp Sensor Duct Probe Only 8" 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A1244-00 Temp Sensor Duct Probe Only 12" 10K Ohm Type III
TE-DFN-B1244-00 Temp Sensor Duct Probe Only 12" 10K Ohm Type II
TE-DFN-C1244-00 Temp Sensor Duct Probe Only 12" 3K Ohm
TE-DFN-D1244-00 Temp Sensor Duct Probe Only 12" Pt100 Ohm RTD
TE-DFN-E1244-00 Temp Sensor Duct Probe Only 12" Pt1000 Ohm RTD
TE-DFN-F1244-00 Temp Sensor Duct Probe Only 12" 20K Ohm
TE-DFN-Q1244-00 Temp Sensor Duct Probe Only 12" 10K Ohm Type III with 11K Ohm Shunt

TE-DFN-A1844-00 Temp Sensor Duct Probe Only 18" 10K Ohm Type III
TE-DFN-B1844-00 Temp Sensor Duct Probe Only 18" 10K Ohm Type II
TE-DFN-C1844-00 Temp Sensor Duct Probe Only 18" 3K Ohm
TE-DFN-D1844-00 Temp Sensor Duct Probe Only 18" Pt100 Ohm RTD
TE-DFN-E1844-00 Temp Sensor Duct Probe Only 18" Pt1000 Ohm RTD
TE-DFN-F1844-00 Temp Sensor Duct Probe Only 18" 20K Ohm
TE-DFN-Q1844-00 Temp Sensor Duct Probe Only 18" 10K Ohm Type III with 11K Ohm Shunt


Please refer to the datasheet to check models capabilities.
