SERIES TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors

Description: The SERIES TE-OND/TE-RND/TE-OSA Outdoor Air Temperature Sensors are available in different configurations to enhance measurement accuracy by mitigating the effects of radiated heat. Designed for outdoor use, these sensors offer protection against weather elements and feature a radiation shield option to counteract heating effects when installed in direct sunlight. With a focus on durability and accuracy, these sensors are suitable for various outdoor applications in building automation and temperature referencing.

Features/Benefits:

  • Weatherproof design for reliable outdoor installation.
  • Radiation shield available to neutralize heating effects post-installation in direct sunlight.
  • Terminal connector eliminates the need for wire nuts, simplifying installation.

Applications:

  • Building automation systems.
  • Outdoor temperature referencing.

Specifications:

  • Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
  • Temperature Limits: Operating: -40 to 302°F (-40 to 150°C).
  • Sensor Curves: Refer to Resistance vs. Temperature Table.
  • Housing Material: Polycarbonate.
  • Enclosure Rating: TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R (IP54).
  • Weight: 0.65 lb (295 g).

The SERIES TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors are engineered for accuracy and durability in outdoor environments. With their weatherproof construction and optional radiation shield, they ensure precise temperature measurements even in challenging conditions, making them ideal for a wide range of outdoor temperature monitoring applications.

Part Numbers:

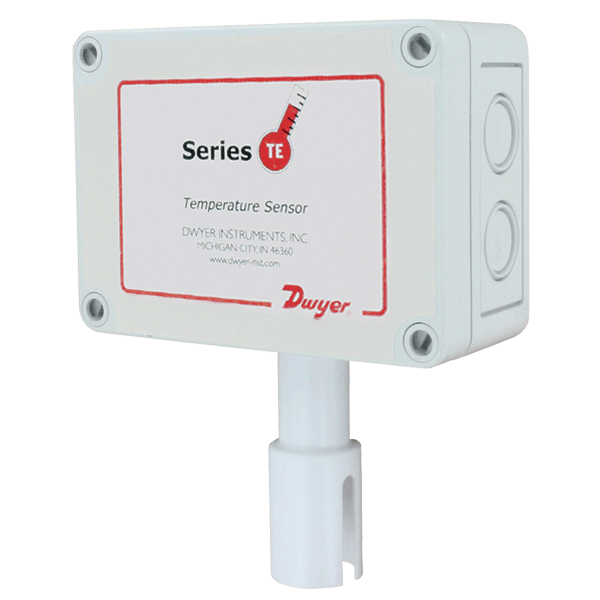

TE-OND-A Outdoor Temp Sensor IP65 10K Ω type III thermistor
TE-OND-B Outdoor Temp Sensor IP65 10K Ω type II thermistor
TE-OND-C Outdoor Temp Sensor IP65 3K Ω thermistor
TE-OND-D Outdoor Temp Sensor IP65 PT100 Ω RTD
TE-OND-E Outdoor Temp Sensor IP65 PT1000 Ω RTD
TE-OND-F Outdoor Temp Sensor IP65 20K Ω thermistor
TE-OND-Q Outdoor Temp Sensor IP65 10K Ω type III thermistor with 11k Ω Shunt

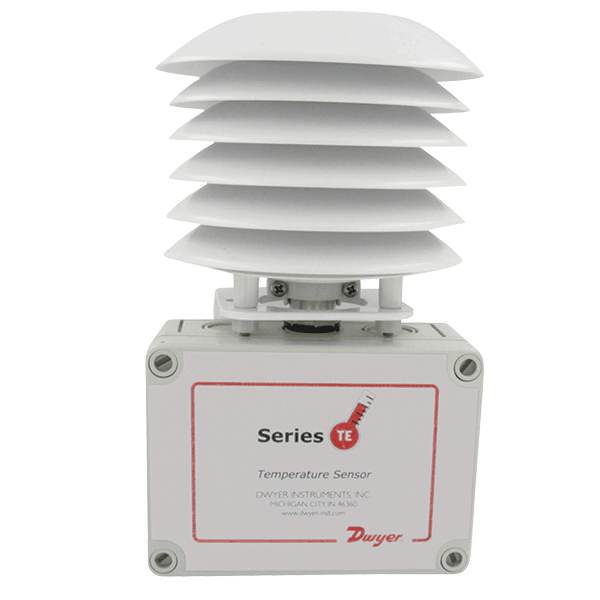

TE-RND-A Outdoor Temp Sensor Radiation Shield IP65 10K Ω type III thermistor
TE-RND-B Outdoor Temp Sensor Radiation Shield IP65 10K Ω type II thermistor
TE-RND-C Outdoor Temp Sensor Radiation Shield IP65 3K Ω thermistor
TE-RND-D Outdoor Temp Sensor Radiation Shield IP65 PT100 Ω RTD
TE-RND-E Outdoor Temp Sensor Radiation Shield IP65 PT1000 Ω RTD
TE-RND-F Outdoor Temp Sensor Radiation Shield IP65 20K Ω thermistor
TE-RND-Q Outdoor Temp Sensor Radiation Shield IP65 10K Ω type III thermistor with 11k Ω Shunt

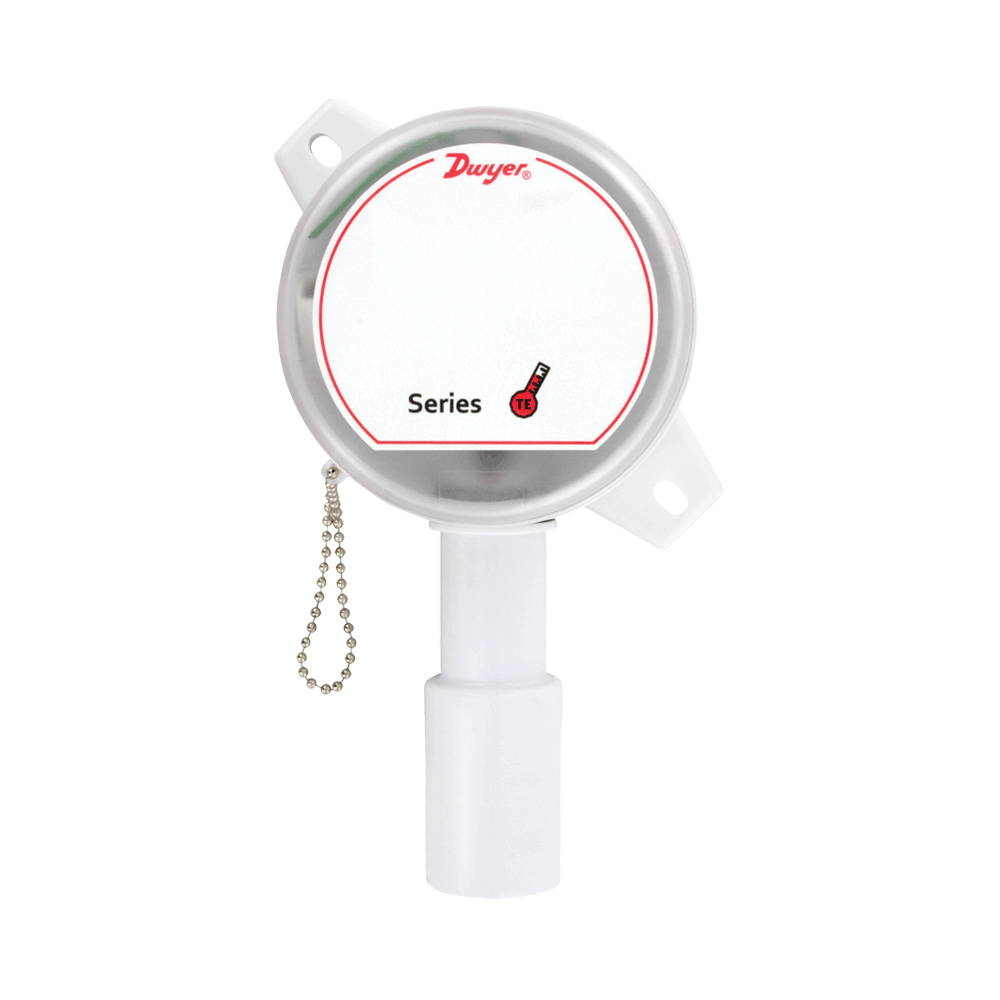

TE-OSA-A Outdoor Temp Sensor IP54 Low Cost Housing 10K Ω type III thermistor
TE-OSA-B Outdoor Temp Sensor IP54 Low Cost Housing 10K Ω type II thermistor
TE-OSA-C Outdoor Temp Sensor IP54 Low Cost Housing 3K Ω thermistor
TE-OSA-D Outdoor Temp Sensor IP54 Low Cost Housing PT100 Ω RTD
TE-OSA-E Outdoor Temp Sensor IP54 Low Cost Housing PT1000 Ω RTD
TE-OSA-F Outdoor Temp Sensor IP54 Low Cost Housing 20K Ω thermistor
TE-OSA-Q Outdoor Temp Sensor IP54 Low Cost Housing 10K Ω type III thermistor with 11k Ω Shunt


Please refer to the datasheet to check models capabilities.
