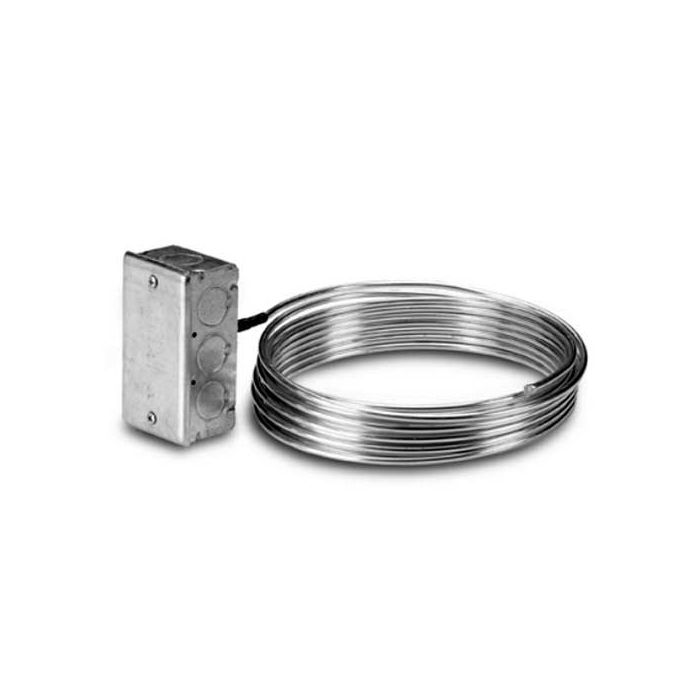

Siemens -Duct Averaging Temperature Sensors - QAM Series

QAM2030 Series Datasheet

QAM2032 Series Datasheet

Efficient HVAC Monitoring with Siemens Duct Temperature Sensors

Description: Siemens Duct Temperature Sensors are essential components for HVAC systems, providing accurate and reliable monitoring of duct air temperature. Whether it's a rigid probe or a flexible probe with bracket mount, these sensors offer precise temperature measurement, ensuring optimal performance of your heating, ventilation, and air conditioning systems.

Key Features:

1. Versatile Sensing Elements:

• Available with various sensing elements, including 100K Ω Thermistor, 10K Ω Type 2 Thermistor, 1K Ω @ 32°F Ni RTD, 1K Ω Pt RTD (375a), 1K Ω Pt RTD (385a), 4 to 20 mA, and 10K Ω Matched Pair Thermistor (For use with Siemens TEC only), catering to diverse HVAC applications.

2. Suitable for Multiple Duct Applications:

• Designed to accommodate multiple duct sizes, offering flexibility and versatility in installation.

3. Responsive Temperature Monitoring:

• Sensors react promptly to temperature changes, providing real-time data to the HVAC control system for efficient climate control.

4. Accurate and Reliable Measurement:

• Ensures precise indication of duct temperature, enhancing overall system performance and energy efficiency.

5. Easy Installation Process:

• Familiar installation process requiring no special tools, ensuring quick and hassle-free setup.

Specifications:

• Output Signals: Various options including Thermistors, RTDs, and 4 to 20 mA signals, catering to different control system requirements.
• Temperature Range: Covers a wide range from -4°F to 250°F, ensuring compatibility with various HVAC applications.
• Probe Material: Constructed with durable 0.028 Wall SAE J526 ZTEW or Galfan steel tubing for long-lasting performance.
• Housing: Standard NEC approved 2 × 4 inch (5 × 10 cm) utility box with 1/2-inch (13 mm) knockouts, ensuring safety and compliance.

Use: Enhance the efficiency and performance of your HVAC systems with Siemens Duct Temperature Sensors. With their accurate temperature monitoring capabilities and easy installation process, these sensors provide reliable data to optimize heating, ventilation, and air conditioning operations, ensuring comfort and energy savings in commercial and residential buildings alike.

Precise Temperature Input with Duct Point Temperature Sensor

Description: The Duct Point Temperature Sensor by Siemens delivers accurate temperature readings to controllers, ensuring efficient climate control in HVAC systems. With various product numbers offering different sensing elements and insertion lengths, these sensors provide versatility and reliability for temperature monitoring in ducts.

Key Features:

1. Versatile Product Numbers:

• Available in different product numbers with various sensing elements and insertion lengths, including:
  • QAM2030.XXX: 10K Ω NTC Type II
  • QAM2032.XXX: 10K Ω NTC Type III
  • QAM2012.XXX: 1K Ω Pt (385α)
  • QAM2020.XXX: 1K Ω Ni Siemens
  • QAM2021.XXX: 1K Ω Ni JCI
• Insertion lengths range from 4 inches (101.6 mm) to 18 inches (457.2 mm), catering to different duct sizes and installation requirements.

2. Easy Installation Process:

• Simple installation with common tools, including a drill with a 13/32-inch (10.3 mm) bit and a power screwdriver or medium flat-blade screwdriver.
• Expected installation time of 45 minutes, ensuring quick setup and integration into HVAC systems.

3. Compliance with Regulations:

• All wiring and installation procedures comply with National Electric Code (NEC) and local regulations, ensuring safety and adherence to standards.

Installation Steps:

1. Drill a 13/32-inch (10.3 mm) hole into the duct at the desired location for sensor placement.
2. Assemble the sensor assembly with the gasket and insert it into the drilled hole.
3. Secure the sensor to the duct using the provided self-tapping sheet metal screws.
4. Attach the flexible conduit and field wiring to the conduit box, ensuring sufficient length for sensor installation and removal.

Use: The Duct Point Temperature Sensor is designed to provide reliable temperature inputs to controllers in HVAC systems. With its versatile product numbers and easy installation process, it ensures precise temperature monitoring in ducts, enhancing overall system efficiency and performance. Compliant with regulations, these sensors offer a seamless solution for temperature control in residential, commercial, and industrial applications.

Part Numbers:
QAM2030.250 Duct Averaging Temperature Sensor NTC 10K Type II 2000mm Probe
QAM2030.500 Duct Averaging Temperature Sensor NTC 10K Type II 6000mm Probe
QAM2030.750 Duct Averaging Temperature Sensor NTC 10K Type II 8000mm Probe
QAM2032.250 Duct Averaging Temperature Sensor NTC 10K Type III 2000mm Probe
QAM2032.500 Duct Averaging Temperature Sensor NTC 10K Type III 6000mm Probe
QAM2032.750 Duct Averaging Temperature Sensor NTC 10K Type III 8000mm Probe
