Siemens - Room Temperature Sensor - OCT100/OCT200 Series

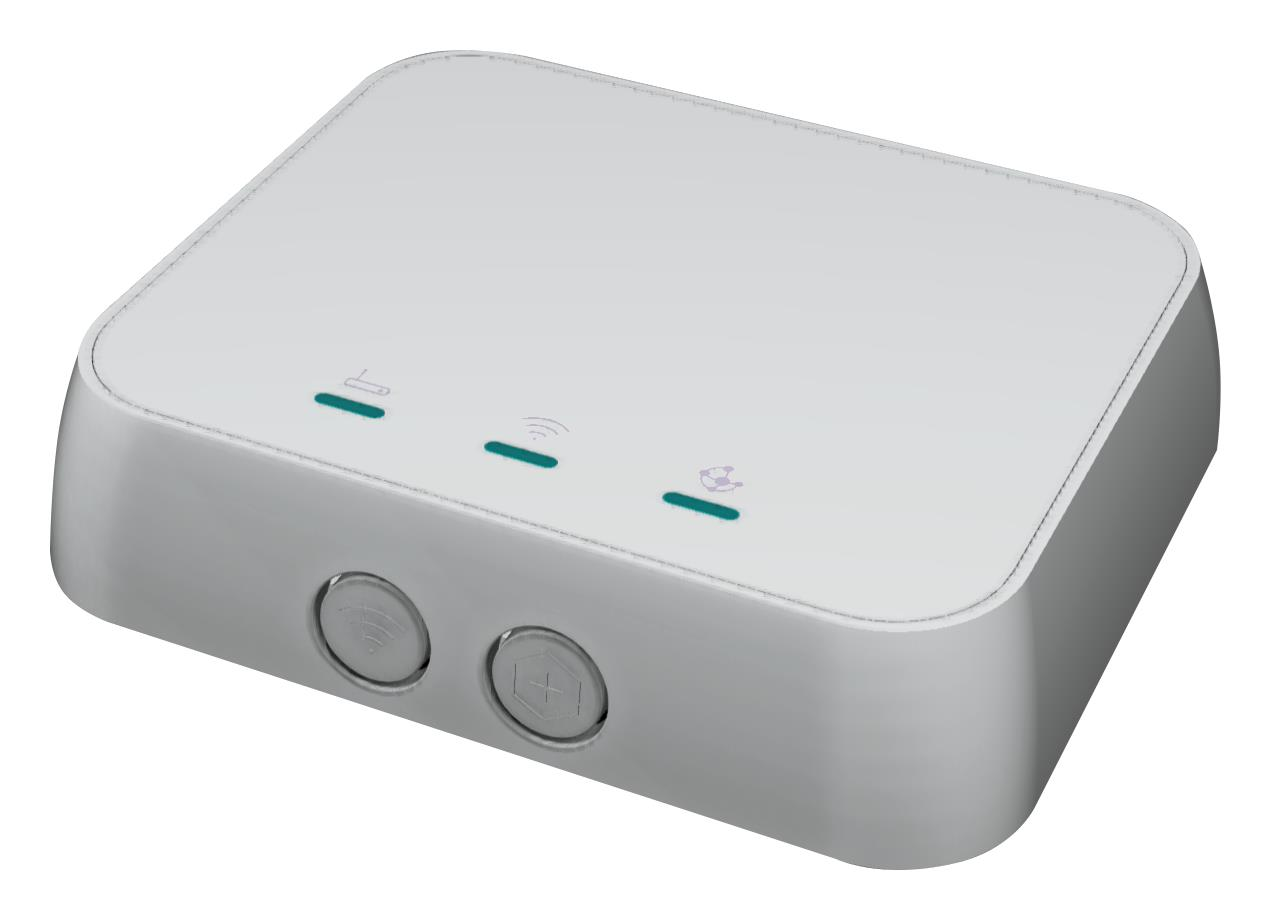

OCT100

MMB Thread Border Router/Thread Mesh Extender, the ultimate solution for creating seamless IoT ecosystems with unparalleled ease and efficiency. Designed to accelerate time-to-market and simplify development, this innovative device leverages Thread technology and Silicon Labs’ industry-leading EFR32MG21 Thread SoC, along with Espressif Systems’ ESP32 WiFi/Bluetooth enabled MCU, ensuring reliability and performance in every application.

Key Features:

1. Versatile Connectivity: The MMB Thread Border Router facilitates IoT connectivity for Thread end devices, supporting communication via Thread, BLE/Bluetooth, Wi-Fi, and 10/100 Ethernet, providing unparalleled flexibility in network configuration and data exchange.

2. Expandable Network: Optionally configured as a Thread Mesh Extender, this device extends the range of Thread communication, bridging distant endpoints to a Border Router or other devices, enabling large-scale deployments and seamless connectivity across vast areas.

3. Plug-and-Play Deployment: With minimal development effort, the MMB Thread Border Router can be easily configured to form a network, connect to other devices, and seamlessly communicate data to the cloud, supporting custom applications and enhancing operational efficiency.

General Information:

• Processor and Memory: Equipped with an ESP32 Host MCU processor boasting 8MB of RAM and 16MB of Flash Memory, along with an EFR32MG21 802.15.4/OpenThread SoC featuring 64Kb of RAM and 512KB of Flash Memory, ensuring robust performance and ample storage capacity for diverse IoT applications.

Electrical Specifications:

• AC Input Voltage: Ranging from 90 to 264 Vac for the power supply and 100 to 240 Vac for device operation, ensuring compatibility with various power sources and environments.

• Operating Temperature: With an operating temperature range of -25 to 85 °C for the device and 0 to 40 °C for the power supply, the MMB Thread Border Router/Thread Mesh Extender delivers reliable performance in a wide range of environmental conditions.

RF Specifications:

• Thread Radio Specifications: Operating in the frequency range of 2405 to 2480 MHz, with transmit power ranging from 9.9 to 19.6 dBm for North American applications and 11.2 dBm for European applications, ensuring robust and reliable communication in Thread networks.

• WLAN Radio Specifications: Operating in the frequency range of 2412 to 2484 MHz, with transmit power ranging from 9.5 to 18 dBm, and receive sensitivity ranging from -96 to -70 dBm, enabling seamless integration with Wi-Fi networks for enhanced connectivity.

• Bluetooth Low Energy Radio Specifications: Operating in the frequency range of 2402 to 2480 MHz, with a maximum transmit power of 8.2 dBm and receive sensitivity ranging from -96 to -85 dBm, facilitating efficient communication in Bluetooth-enabled devices and applications.

With its comprehensive features, robust performance, and effortless deployment, the MMB Thread Border Router/Thread Mesh Extender is the ideal platform for customers seeking to deploy their own Thread-based IoT solutions for consumer or commercial applications. Experience seamless connectivity, enhanced scalability, and unparalleled reliability with MMB Networks' innovative IoT solutions.

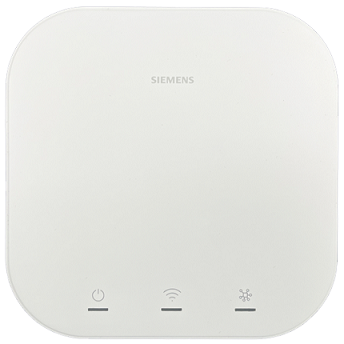

 OCT200

KNX IoT to BACnet IP Gateway, a revolutionary solution for seamless integration between BACnet IP and KNX IoT mesh networks. Designed to bridge the gap between these two widely used protocols, this gateway enables wireless communication via KNX IoT over Thread, providing unparalleled flexibility and scalability in building automation and control systems.

Key Features:

1. Wireless Connectivity: Utilizing KNX IoT over Thread communication, this gateway facilitates data exchange with sensors and tools over a wireless Thread network, eliminating the need for cumbersome wiring and infrastructure.

2. BACnet IP Support: Seamlessly integrate BACnet IP devices and systems by supporting BACnet IP over Ethernet connection, enabling interoperability and communication across diverse building automation platforms.

3. Easy Commissioning and Configuration: Commission and configure the gateway effortlessly via a web-based user interface over WLAN using a PC or smartphone, streamlining setup and maintenance tasks for enhanced convenience and efficiency.

4. LED Indication: LED indicators provide clear visual feedback on power status, WLAN connection, Thread connection, device restart, factory reset, and operation state, ensuring easy monitoring and troubleshooting.

Typical Applications:

• Commercial Office Buildings: Enhance building automation and control systems in office spaces for improved energy efficiency, comfort, and convenience.

• Public Infrastructure: Optimize the management of public infrastructure facilities such as airports, hospitals, and educational institutions with seamless integration and communication between BACnet IP and KNX IoT networks.

Functions:

• Push Buttons: Two push buttons facilitate device reset to factory settings, as well as switching on/off WLAN or joining the Thread network, providing convenient control and management options.

• Mechanical Design: Designed for wall mounting and ceiling mounting, the gateway's compact and versatile design ensures easy installation and integration into existing infrastructure.

Type Summary:

• Product Number: OCT200.KNBA
• SSN NO.: S55812-Y102
• Operating Voltage: DC 12 V
• Description: KNX IoT to BACnet IP gateway

Part Numbers:
OCT100.R - Thread Border Router
OCT200.KNBA - KNX IoT to BACnet IP gateway
