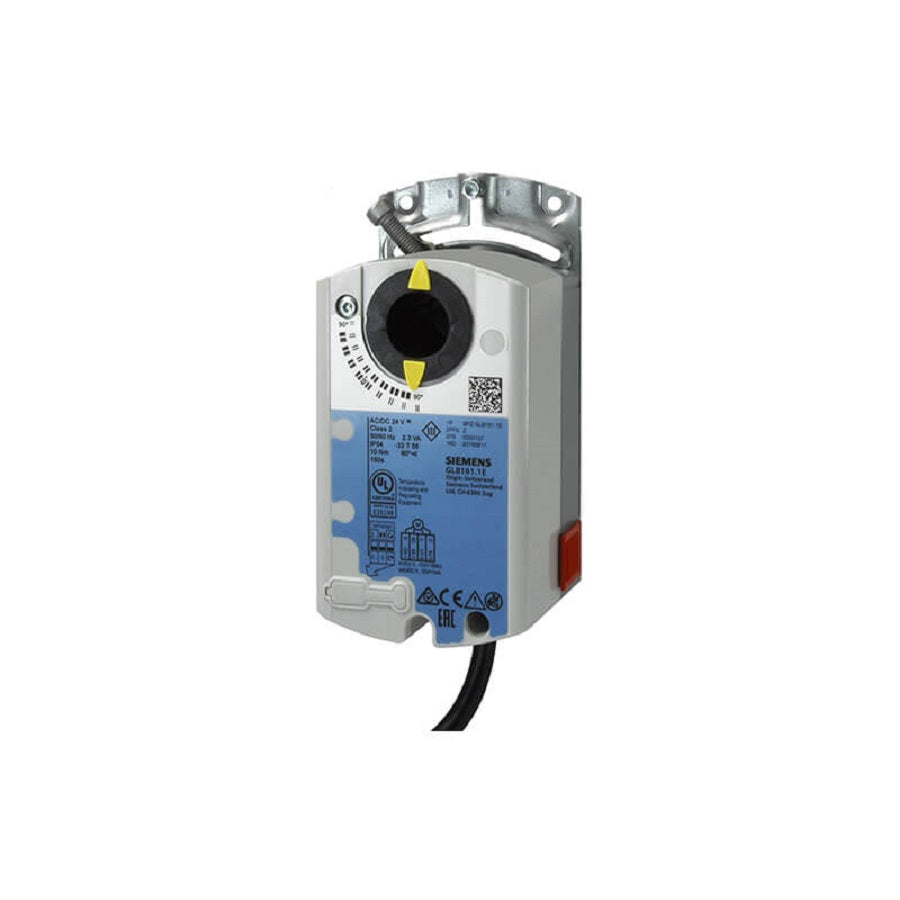

Elevate your HVAC system's performance with the Siemens GLB Series Damper Actuator. These electronic motor-driven actuators are the epitome of control precision, designed for various applications. Here's a closer look at this exceptional product and its features:

Key Features:

  • Versatile Control: The GLB Series Damper Actuator offers a wide range of control options, including open-close, three-position, and modulating control. Whatever your HVAC system needs, this actuator delivers.

  • Robust Torque: With a substantial nominal torque of 10 Nm, this actuator ensures reliable and consistent performance, even in demanding applications.

  • Flexible Power Supply: You can power this actuator with AC 24 V~, DC 24…48 V⎓, or AC 100…240 V~. This versatility makes it suitable for various electrical systems.

  • Adjustable Span: Fine-tune your damper's positioning with the mechanically adjustable span, offering a range of 0 to 90 degrees.

  • Ready for Installation: Save time and effort during setup with the included 0.9-meter-long pre-wired connection cables.

  • Customizable: Tailor the actuator to your specific needs with type-specific variations that provide adjustable offset and span for the positioning signal.

  • Position Indication: Stay informed about the damper's status through both mechanical and electrical position indicators.

  • Feedback Potentiometer: Enhance control accuracy with the integrated feedback potentiometer.

  • Self-Adaptive: The actuator boasts self-adaptive capabilities for rotational angle range and offers adjustable auxiliary switches for supplementary functions.

Applications:

The GLB Series Damper Actuator is ideal for use in ventilation and air conditioning plants to regulate and shut off air dampers. Its guidelines suggest suitability for damper areas up to 1.6 m², though it's essential to adhere to the damper manufacturer's data for precise requirements.

These actuators are compatible with modulating controllers (DC 0/2...10 V), open-close, or three-position controllers, making them incredibly versatile for various air damper and air throttle applications.

For optimal operation when using rotary actuators with 3-point control, it's recommended to maintain a minimum pulse length of 500 ms, ensuring continuous and precise performance.

Part Numbers:
GLB141.1E Damper Actuator Rotary 10Nm AC/DC 24V 3-Pos NSR (S55499-D385)
GLB142.1E Damper Actuator Rotary 10Nm AC/DC 24V 3-Pos NSR Potentiometer (S55499-D386)
GLB136.1E Damper Actuator Rotary 10Nm AC 24V 3-Pos NSR Dual Aux. Switches (service replacement only)
GLB146.1E Damper Actuator Rotary 10Nm AC/DC 24V 3-Pos NSR Dual Aux. Switches (S55499-D387)
GLB161.1E Damper Actuator Rotary 10Nm AC/DC 24V 0…10V NSR (S55499-D398)
GLB163.1E Damper Actuator Rotary 10Nm AC/DC 24V 0…10V adj. NSR (S55499-D399)
GLB164.1E Damper Actuator Rotary 10Nm AC/DC 24V 0…10V adj. NSR Dual Aux. Switches (S55499-D400)
GLB166.1E Damper Actuator Rotary 10Nm AC/DC 24V 0…10V NSR Dual Aux. Switches (S55499-D401)
GLB341.1E Damper Actuator Rotary 10Nm AC 230V 3-Pos NSR (S55499-D388)
GLB346.1E Damper Actuator Rotary 10Nm AC 230V 3-Pos NSR Dual Aux. Switches Potentiometer (S55499-D389)
GLB361.1E Damper Actuator Rotary 10Nm AC 230V 0…10V NSR (S55499-D390)
GLB111.1E/MO Damper Actuator Rotary 10Nm AC 24V Modbus (S55499-D199)
