• Dwyer - Paddle Flow Switch - FS Series

Dwyer

Dwyer - Paddle Flow Switch - FS-2-BSPT

SKU FS-2-BSPT
$105.00

Secure Payment & Return Policies
payments_badges

We use highly secure payment platforms, including Shop, Shopify Payments, Paypal, and Google Pay, to ensure your peace of mind. Here's what you can count on:

  1. Secure Transactions: Our partners are industry leaders in payment security, using cutting-edge encryption to protect your data.

  2. Fraud Protection: Rigorous fraud detection measures are in place to safeguard your transactions.

  3. Flexible Payment Options: Choose from various trusted payment methods, including credit cards and digital wallets like Google Pay and Paypal.

  4. Buyer Protection: Benefit from the buyer protection policies of our partners, ensuring refunds and dispute resolution.

  5. Satisfaction Guarantee: We're confident in our products, and our customer support team is here to assist you if any issues arise.

  6. Return Policies: Please visit our policies to safely return any products that doesn't match your expectations.

Please feel free to contact us through our contact channels, our online chat there is always a team member online to help you out! If you prefer to call, our number is 0 401 690 551.

FAQs - Frequently Asked Questions
1. What are your accepted payment methods?
Shop, Shopify Payments, Paypal, and Google Pay. Other payments methods are also available during checkout.
2. How can I track my order?
After your order has been shipped, you will receive a shipping confirmation email with a tracking number. You can use this number to track your package on our website or through Sendle carrier.
3. I have a project, can tecnologia help me?
Yes! We have a dedicated team to assist you on your project. Contact us through contact page or email: contact@tecnologiashop.com.au
4. What is the availability of your products?
Together with our partners, we work with a flexible inventory, we have multiple distribution centre across Australia, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h before shipping.
5. Can I pick up my order? Where you're located?
Yes! We're located at Unit 5/37 Anzac Ave, Smeaton Grange NSW 2567. Note that this is NOT a physical store, please order online and collect when available for collection. We have multiple distribution centre, for that purpose some items are strategically located in other regions. That's why we commonly process all orders within 48h.
$105.00
Apply for a Business Credit Account
Dwyer - Paddle Flow Switch - FS Series

  • Australia Post

    Express Parcel and Parcel Post available.

  • New Zealand

    We now ship to New Zeland

  • Contact us

    Our online team is ready to help you by chat and email!

  • Availability

    Check availability on the green button above.

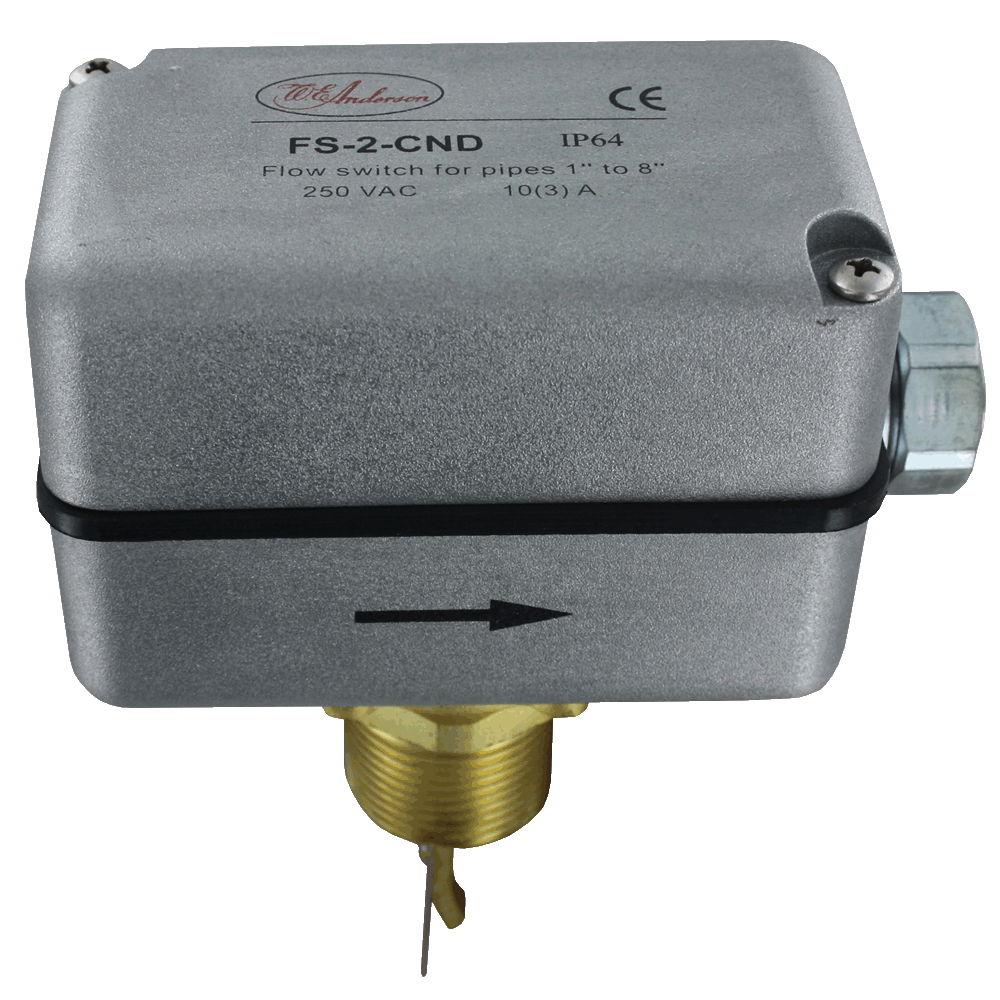

Model FS-2 Paddle Flow Switch

Description: The Model FS-2 Paddle Flow Switch offers an economical solution for flow proving applications. Featuring custom set points tailored to specific requirements, this switch allows for field-adjustable vane layers and a set point adjustment screw. Housed in a durable aluminum weatherproof casing, the FS-2 is designed for outdoor installation. Its adjustable paddles accommodate pipe sizes ranging from 1˝ to 8˝, making it ideal for "flow or no flow" applications in both cold and hot water systems.

Features:

  • Field Adjustable Paddle for customized flow sensing.
  • Field Adjustable Set Point for precise control.
  • Weatherproof Construction ensures durability in outdoor environments.

Installation:

  1. Unpack and remove any packing material from the lower housing.
  2. Install in piping with the arrow pointing in the direction of flow.
  3. Ensure vertical installation on horizontal pipe runs.
  4. Maintain a safe distance from turbulence sources such as elbows, valves, and pumps.
  5. Recommended minimum distance upstream and downstream is about 5 times the pipe's diameter.

Specifications:

  • Service: Compatible liquids.
  • Wetted Materials: Bellow - Tin-bronze; Vane - Stainless Steel; Body - Forged brass.
  • Temperature Limit: 230ºF (110ºC).
  • Pressure Limit: 145 psig (10 bar).
  • Enclosure Rating: IP64.
  • Switch Type: SPDT snap switch.
  • Electrical Rating: 10A res, 3A ind @ 250 VAC.
  • Electrical Connection: Cable gland with attached wire leads.
  • Process Connection: 1˝ male NPT.
  • Mounting Orientation: Vertical installation on horizontal pipe runs.
  • Set Point Adjustment: Four vane combinations and an adjustment screw.
  • Enclosure: Die-cast aluminum alloy.
  • Weight: 28.22 oz (0.8 kg).
  • Agency Approvals: CE.

The Model FS-2 Paddle Flow Switch delivers cost-effective flow proving with customizable set points and reliable performance in outdoor settings. Its robust construction and versatile design make it suitable for a wide range of applications, ensuring efficient operation in various liquid flow scenarios.

Part Numbers:
FS-2-BSPT Flow Switch Water adjustable set point weatherproof 1-8" pipe size

Please refer to the datasheet to check models capabilities.
Need help to order a specific Part-Number? Contact Us!
