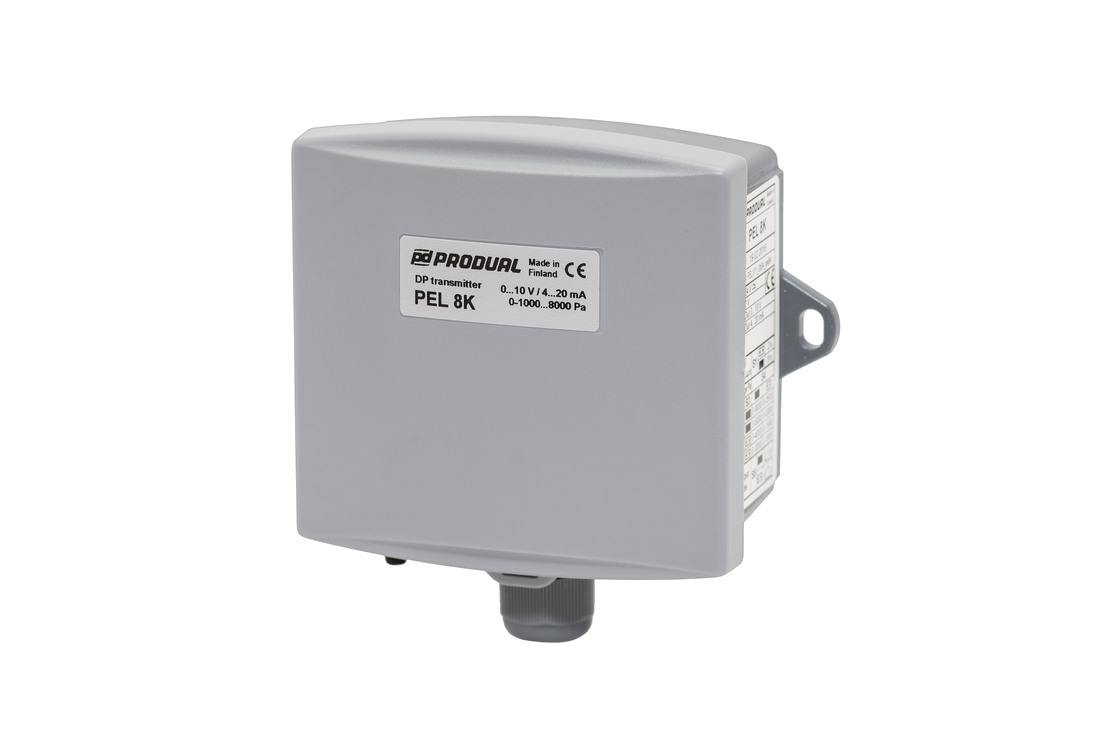

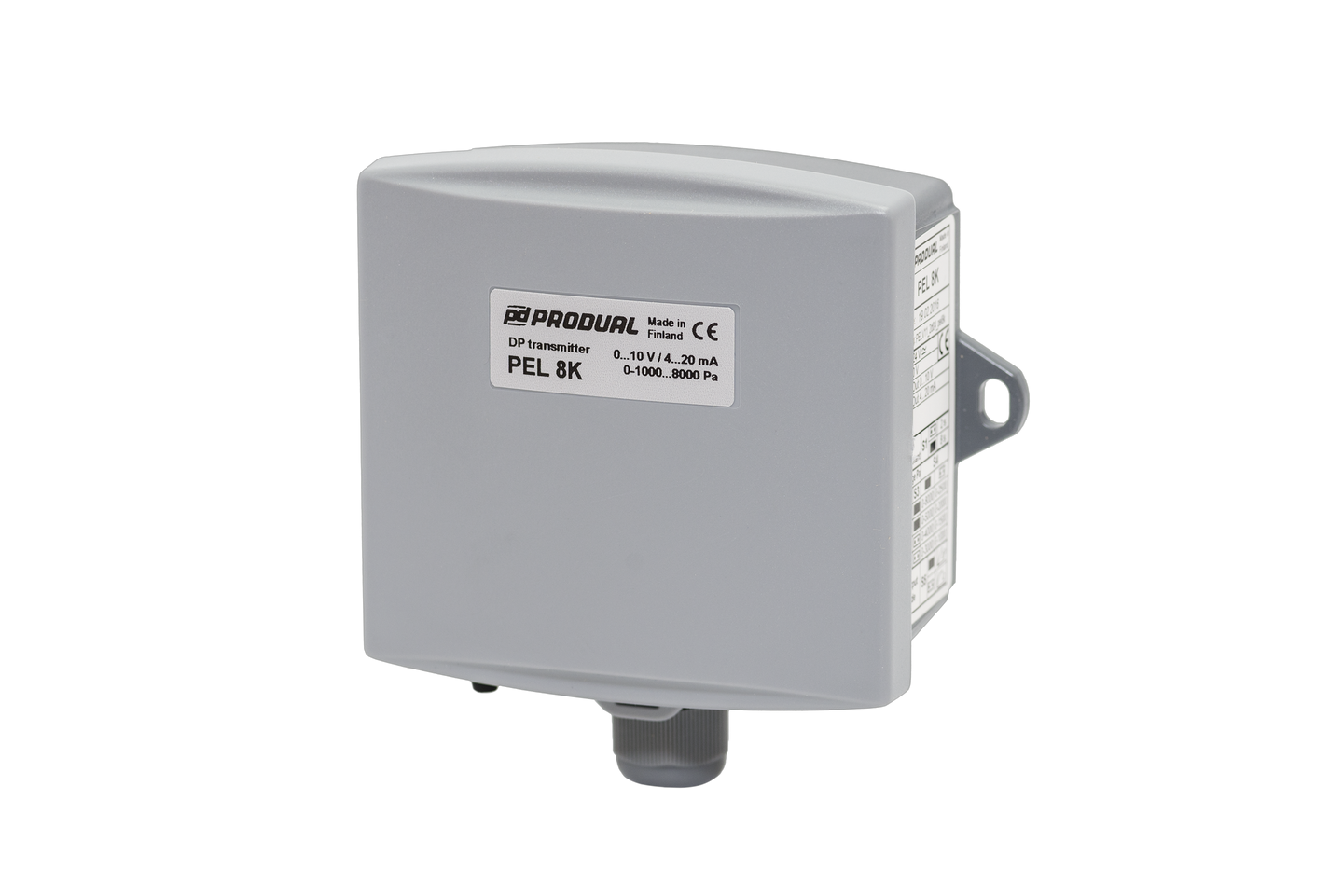

Differential Pressure Transmitter (PEL 8K)
Application: The PEL 8K pressure transmitter is designed for detecting pressures and pressure differences in air handling systems. It is suitable for applications where precise pressure measurements are essential for system performance.
Features:
- Pressure measurement is compensated according to the ambient temperature, ensuring accuracy across various operating conditions.
- Process disturbances (e.g., turbulence) can be dampened by selecting a suitable time constant (2 s or 8 s), optimizing system stability.
- Output signal can be selected to be either differential pressure linear or flow (volume) linear, offering flexibility in system integration.
- The transmitter zero point is kept accurate by using regular automatic zeroing, eliminating possible zero-point drifting. Recalibration is not normally needed, reducing maintenance requirements.
Technical Specifications:
- Supply: 24 Vac/dc (22…28 V), < 2 VA
-
Pressure Measurement:
- Range: 0...8000 Pa / custom setting, 100 Pa steps
- Accuracy (25 °C): ±10 Pa ±1 % of reading
- Time Constant: 2 s or 8 s (customizable)
- Max. Over Pressure: 25 kPa
- Connection: Ø5 mm
-
Output (Pressure or Flow Linear):
- 0...10 / 2…10 / 0…5 Vdc, < 2 mA
- 4…20 / 0…20 mA, 700 Ω
-
Display (N models):
- Type: Backlit dot matrix display
- Resolution: 0.1 Pa for values below 200 Pa, 1 Pa for values above 200 Pa
-
Wiring Terminals:
- Size: 1.5 mm²
- Tightening Torque: 0.6 Nm
- Appliance Class (IEC 60664‑1): III
-
Operating Conditions:
- Temperature: 0...45 °C
- Humidity: 0...95 % RH (non-condensing)
-
Housing:
- Material: PC plastic
- Protection Class: IP54, cable entry downwards
- Cable Gland: M16
- Dimensions: 106 x 102 x 46 mm
Part Numbers:
PEL 8K - Pressure Transmitter 8K

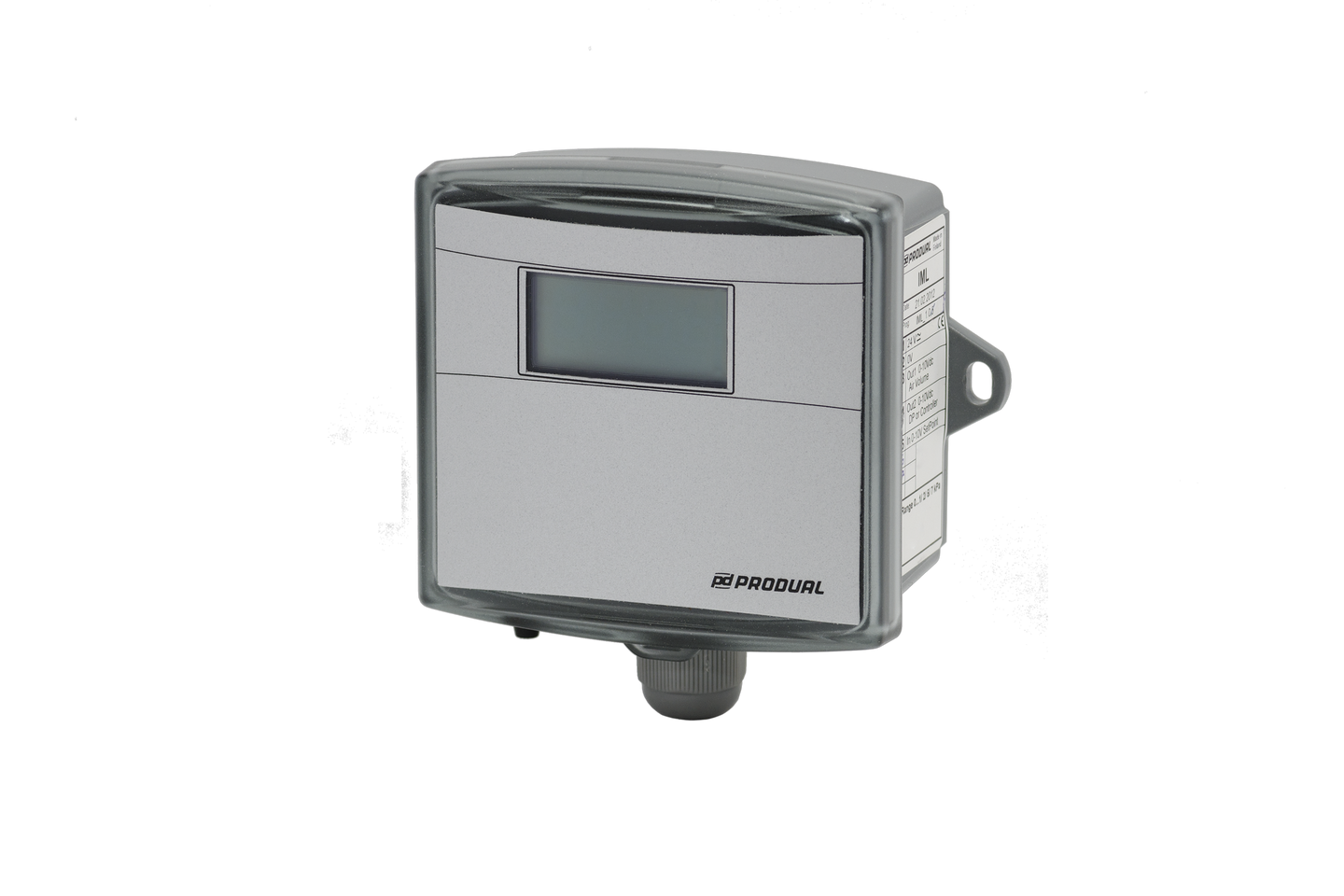

PEL 8K-N - Pressure Transmitter 8K + Display
Need help to order a specific Part-Number? Contact Us!
